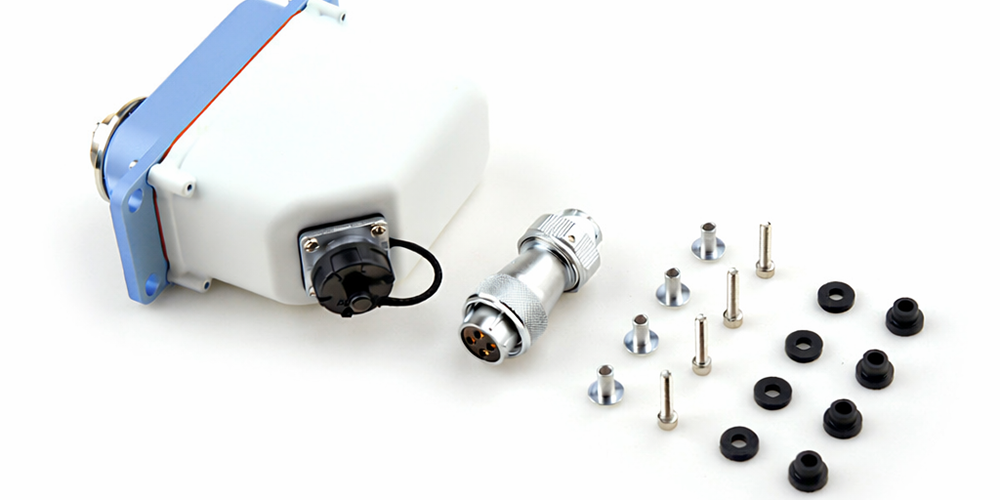

The Super400 CAN servo is based on the original Super400 plus structure, with the addition of CAN BUS communication, full compatibility with the KST servo protocol, optimized gear design, and the addition of aviation-grade WF20 connector based on customer feedback.
Specifications:
Rated Voltage: 24V
Operating Voltage: 16V~28V (Battery power recommended)
Standby Current: ≤60mA @24V
Stalled Current: ≤22A at 24V (coil temperature around 60℃)
No-load Current: Minimum 600mA, Typical 800mA, Maximum 1000mA @24V
Maximum Torque: 400kgf.cm
Rated Torque: 120kgf.cm
No-load Speed: Typical 0.46s/60° @24V (including start and stop time)
Motion Range: ±100° Motion range limit is within ±100°, positive range: 0~+100°, negative range: 0~-100°
Dimensions: 132.0×55.0x116.4mm
Weight: 760g (excluding cable weight)
Waterproof Rating: IPX3
Housing Material: Aluminum Alloy
Gear Material: All Metal
Position Sensor Magnetic Encoder
Motor Type: DC Brushed Motor
Connection Type: WF20 4-pin
Signal Input: CAN
CAN BUS Protocol Fully Compatible with KST Servos
