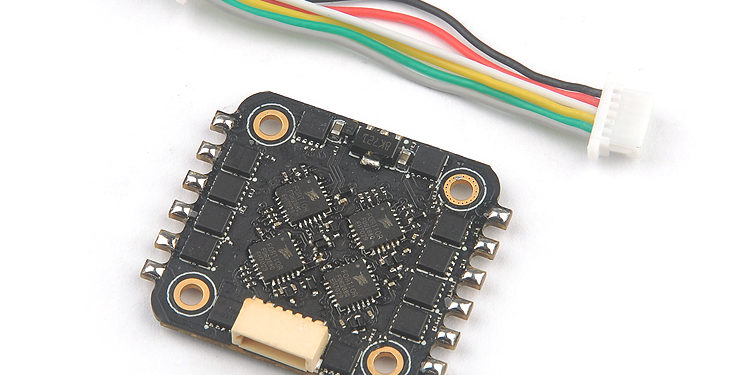

Item name: BS415 15A ESC
Size: 27*31mm (inlcude bonding pad)
Mounting holes: 20*20mm
Weight: 3.5g
Input voltage: 2-4S LiPo/ 2-4S HV LiPo
BEC output: no
Con. Current: 15A*4
Peak Current: 20A (5S)
Firmware: BLHELI_S
Processor: SILABS EFM8BB21F16G
MOS tube: AON7754
Driver: a new generation 3in1 MOS driver
Support PWM, Multishot, Oneshot125, DSHOT150/300/600
Package inlcuded:
1x BS415 15A ESC
1x 6P*1.0MM cable connector
4x M2 * 5 nylon screw
4x M2*5+5 Nylon column
4x Nylon nuts
Notes:
1. No 5v BEC output, the BAT pin is the Battery direct output
2. PWM1 matched M1 motor, PWM2 matched M2 motor, PWM3 matched M3 motor, PWM4 matched M4 motor, but it’s not the Betaflight motor order ,please check them before install to the Frame.
3. Don’t use metal screws to fix the ESC
