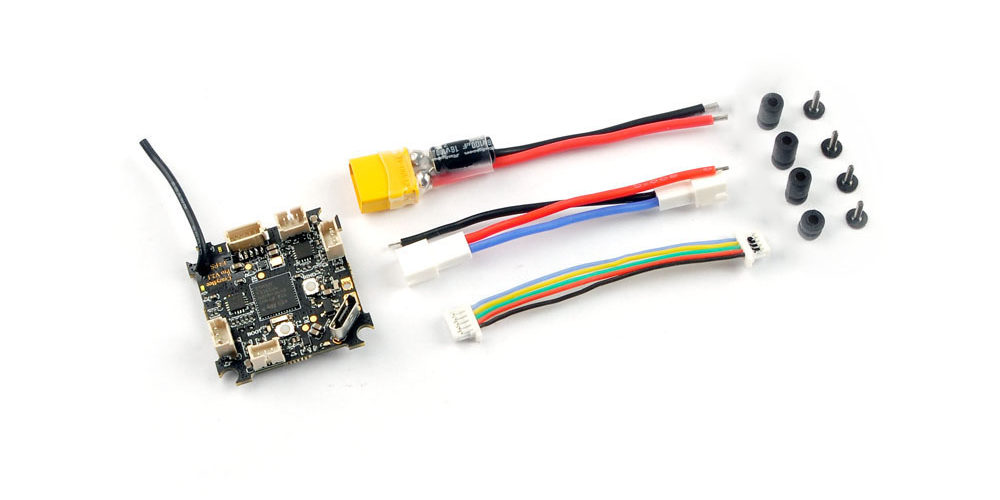

Package include:
Crazybee F4 PRO V2.1 flight controller x1
XT30 Pigtail x1
5pin-5pin SH1.0 Plug ( used for connect with Whoop_vtx or Diamond_vtx) x1
2x 1s PH2.0 Serial connect power wire x1
Rubber damping balls set x1
| Flight controller | (Frsky version) CRAZYBEE F4FR PRO V2.1 Firmware target: CrazybeeF4FR
(Flysky version) CRAZYBEE F4FS PRO V2.1 Firmware target: CrazybeeF4FS (DSM2/DSMX version) CRAZYBEE F4DX PRO V2.1 Firmware target: CrazybeeF4DX (No RX version) CRAZYBEE F4 PRO V2.1 Firmware target: CrazybeeF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Board size: 28.5 * 28.5MM Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable) EU-LBT support Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable) DSM2/X Version built-in Serial-based DSM2/DSMX compatible satellite receiver No RX version need to add external Receiver Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 28A Current meter scale set to 1175 Built-in 5V 1A BEC with LC filter Built-in voltage detection |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21
Power supply: 2-3S LiPo/LiPo HV (7.4v/13v) |
| Frsky receiver Version | SPI BUS receiver
Frsky D8/D16 switchable Compatible both Non EU and EU-LBT transmitter Channels: 8ch or 16ch EU-LBT support(need to update betaflght v4.0 date 2019-04-11) Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| Flysky receiver Version | SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 300m Failsafe support |
| DSM2/DSMX receiver version | Serial bus receiver
Protocol: DSM2/DSMX compatible Channels:6-9 (Depend on your radio) No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| PNP No RX version | No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc. |
I’m trying to purchase the DSMX 2.1 flight controller, but I can’t seem to find the purchase price or shopping cart. Can you please help??
Hello, tell me please, where I can buy this controller with FRSKY version. With delivery to Russia. There are no buyers with frsky in aliexpress store?
Is it possible to use f.port in Crazybee F4 PRO V2.1 and Frsky ARCHER M + receiver?
