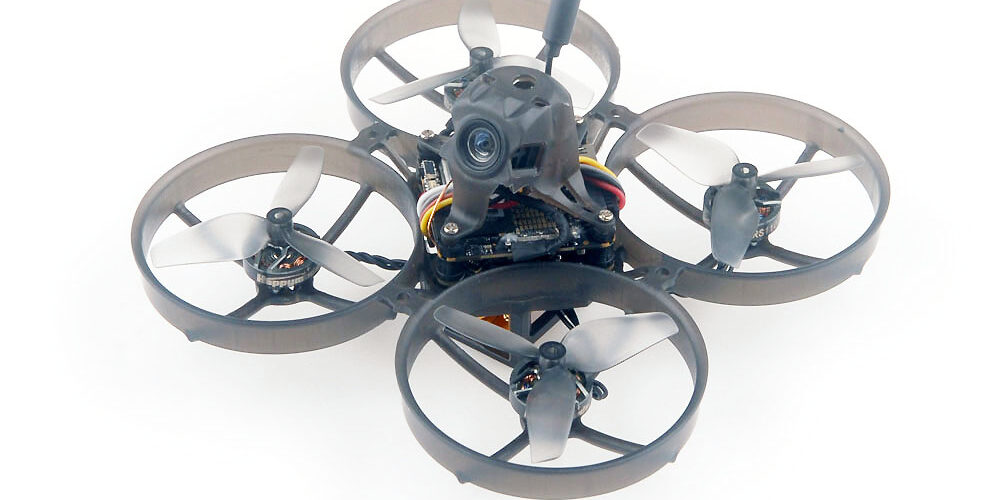

The Happymodel Mobula7 O4 micro FPV whoop comes out now . It comes with the new DJI O4 air unit which would provide excellent and unbelievable FPV footage. And the new Happymodel RS1102 KV10000 motor with HQPROP 45mm propellers , bring a powerful and smooth flying experience. This would be a good option for indoor and backyard FPV flying.
Features:
Equipment with New DJI O4 air unit
2S battery support Powerful and Smooth freestyle flying
UART ExpressLRS receiver support stable control link
Lighter and small for indoor FPV
Package includes:
| Item Name | Qty |
| Happymodel M80 Frame | 1 |
| CrazyF405HD ELRS flight controller firmware target:BETAFLIGHTF4 | 1 |
| RS1102 KV10000 brushless motor | 4 |
| HQPROP 45MMX2 bi-blade propellers(4cw+4ccw) | 1 |
| DJI O4 Air unit | 1 |
| Canopy | 1 |
| Screw driver | 1 |
Spare parts specifications:
| Motor | Mode: RS1102 KV10000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*14mm Weight(g):2.8g No.of Cells(Lipo):1-2S |
| Propellers | Weight:0.25g Material: Poly Carbonate Pitch:0.9 Props Dia:45mm Hub Thickness:5mm Shaft:1.5mm |
| Flight controller | MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) GYRO Sensor: BMI270 (SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Serial ExpressLRS 2.4G Built-in BMP280 Barometer Built-in 8MBp blackbox Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470 |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19 Firmware target: Z-H-30 Default protocol: DSHOT300 When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200 |
| Onboard UART ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Default firmware version: ExpressLRS V3.0.1 Firmware target: HappyModel EP 2400 RX Could update firmware via ExpressLRS configurator |
| DJI O4 Air Unit | Weight: Air Unit (camera module included): Approx. 8.2 g Transmission Module: 30×30×6 mm (L×W×H) Camera Module: 13.44×12.36×16.50 mm (L×W×H) Camera Cable Length: 50mm Coaxial Cable: 50 mm 3-in-1 Cable: 50 mm Operating Frequency: 5.170-5.250 GHz 5.725-5.850 GHz Operating frequency varies by region. Refer to local regulations. Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE) 5.8 GHz: <30 dBm (FCC) <14 dBm (CE) <30 dBm (SRRC) Live View Quality: 1080p at 30/50/60/100fps |
***If you want to use DJI FPV Remote controller, please change betaflight settings like following picture,no need do any hardware modification to the flight controller:
