Specification:
Flight controller
Specification:

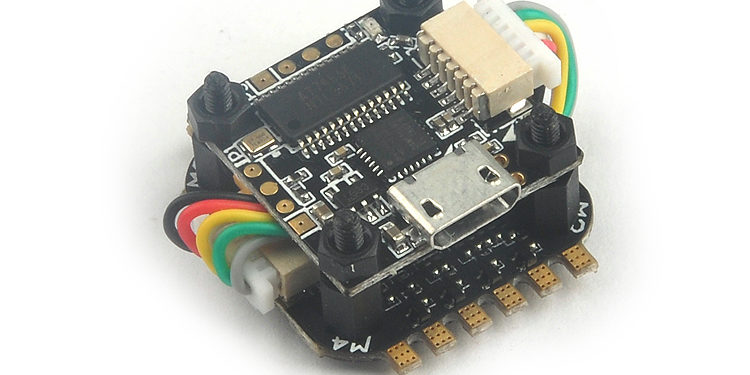

Item name: TeenyF3 Pro flight controller board
Size: 20*20mm
Mounting hole: 16*16mm
Diameter: 2mm
Weight: 2.1g
Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000 ( connected by SPI)
Firmware version: betaflight_3.1.7_OMNIBUS
Built-in Buck-Boost Converter
Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
Power supply: 1S~2S lipo battery
Suitable for 60mm-80mm mini brushless FPV Quadcopter frame
ESC
Specification:
Item name: Teenypro 5A 4 In 1 BLHeli_S ESC
Size: 23x27mm (includes solder pad)
Mounting holes: 16x16mm, φ2mm
Weight: 2.1g
Input voltage: 1-2S Lipo battery
Con. Current: 5A
Peak Current: 7A (5S)
Firmware: BLHELI_S
Processor: SILABS EFM8BB21F16G
BEC: NO
Supports Dshot150 Dshot300 Dshot600 Oneshot125 Multishot PWM
Firmware target: BLHeli_S S_H_50_REV16_7
Features:
-Support programmable LED_Strip
-Support BLheli/BLHELI_S suite Pass-through ready
-Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
-Default Dshot600 ready
-Built-in voltage detection, alarm
-Built-in Betaflight-OSD
-Buzzer solder pin
-LED_STRIP solder pin
Package included:
1* TeenyF3 Pro flight control board
1* Teenypro 5A 4in1 ESC
8*M2*5+5 Nylon column
8*M2 Nuts
8*M2 Screw
