Flight controller：
Specification:

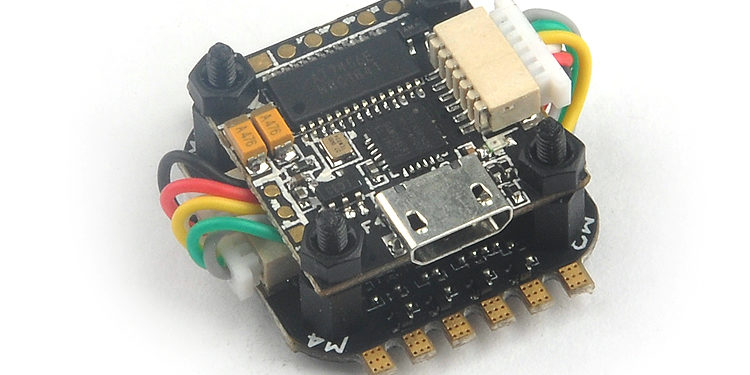

Item name: TeenyF4 Pro flight controller board
Size: 20*20mm
Mounting hole: 16*16mm
Mount hole Diameter: 2mm
Weight: 2.2g
Processor: STM32F405RGT6
Sensor: MPU-6000 ( connected by SPI)
Firmware version: betaflight_3.2.0_OMNIBUSF4SD
Built-in Buck-Boost Converter
Power supply: 1-2S Lipo battery
Receiver: PPM, IBUS, SBUS, DSM2, DSMX etc.
Suitable for Micro FPV brushless frame
ESC
Specification:
Item name: Teenypro 4 In 1 5A BLHeli_S ESC
Size: 23x27mm (includes solder pad)
Mounting holes: 16x16mm, φ2mm
Weight: 2.1g
Input voltage: 1-2S Lipo battery
Con. Current: 5A
Peak Current: 7A (5S)
Firmware: BLHELI_S
Processor: SILABS EFM8BB21F16G
BEC: NO
Supports Dshot150 Dshot300 Dshot600 Oneshot125 Multishot PWM
Firmware target: BLHeli_S S_H_50_REV16_7
Features:
-Support programmable LED_strip
-Support BLheli/BLHELI_S suite Pass-through ready
-Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
-Default Dshot600
-Built-in voltage detection, alarm
-Built-in Betaflight-OSD
-Buzzer solder pin
-LED_STRIP connector
Package included:
1* TeenyF4 Pro flight control board
1* Teenypro 5A 4IN1 ESC
1* Connection wire
8*M2*5+5 Nylon column
8*M2 Nuts
8*M2 Screw
Hi, bought this. I can see from betaflight there is UART3 and UART6 but I cannot see any physical pin on FC board. Can you help?
The solder pads for SBUS is detached and I cant solder there anymore.
Is there any other pin that I can remap to become SBUS receiver pin?
