Specification:
The board integrates with PX4FMU+PX4IO
Pixhawk is with new 32 bit chip and sensor technology
Processor:
32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
Main frequency: 256K, 168MHZ RAM
32 bit STM32F103 backup co processor
Sensor:
L3GD20 3 axis digital 16 bit gyroscope
LSM303D 3 axis 14 bit accelerometer /magnetometer
MPU6000 6 axis accelerometer / magnetometer
MS5611 high precision barometer
Interface:
5* UART, 1*compatible high voltage, 2*hardware flow control
2*CAN
Spektrum DSM/DSM2/DSM-X satellite receiver compatible input
Futaba SBUS compatible input and output
PPM signal input
RSSI (PWM or voltage) input
I2C
SPI
3.3 and 6.6VADC input
External USB MICRO interface
Features:
– Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
– Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
– Provide redundant power input and fault transfer function;
– 14* PWM/ actuator output;
– Bus interface (UART, I2C, SPI, CAN);
– Provide automatic and manual mode;
– Color LED lamp;
– Multi tone buzzer interface;
– Micro SD to record flight data;

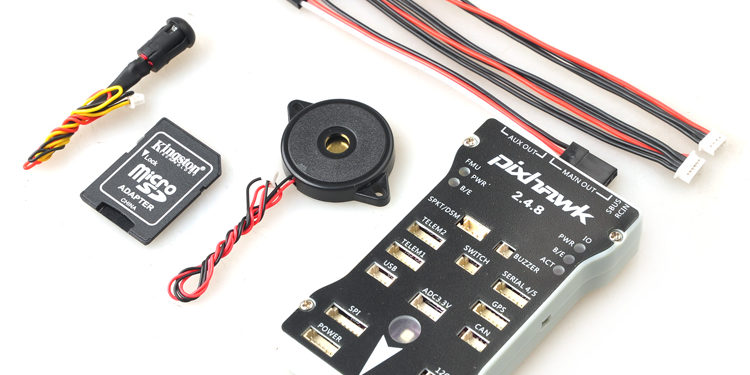

Package included:
1 x 2.4.8 Pixhawk main control
1 x Safety switch
1 x Flight control shell
1 x Buzzer
1 x 6pin to 6pin line
1 x 4Pin to 4Pin line
1 x 3pin DuPont line
