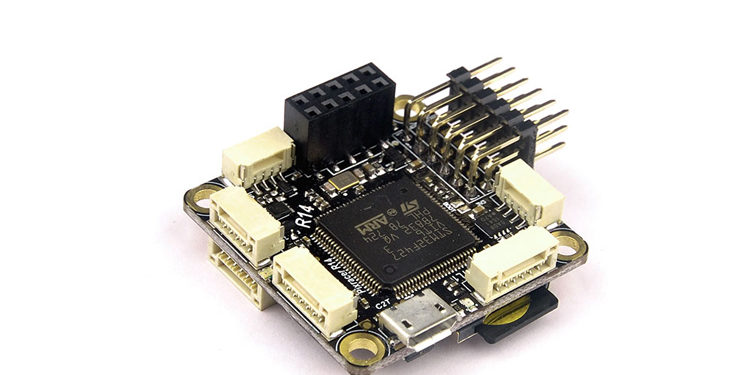

The new Release Pixracer R14 is available now and its fully supported by the Arducopter and PX4 Flight stack. Its a genuine open source project, already running with PX 4 stack software-QGroundControl (QGC), as well with Arducopter / Mission Planner (MP). Compare to the V1.0 version, the R14 Version fixed Spektrum satellite binding issue.
This is not just another small Pixhawk knock off or derivate, the Pixracer is the first autopilot of the new FMUv4 Pixhawk generation. Its coming with an upgraded Invensense Sensor generation (bye bye tricky LSM 303), a plug in WIFI board and last not least with a 2MB Flash : A real upgrade compared to former versions.
Overview:
Specifications :
MCU – STM32F427VIT6 rev.3
PCB dimension 36mm*36mm
FRAM – FM25V02-G
LDO Ultra low noise LDOs for sensors and FMU
Sensors: MPU9250 , ICM20608 , MS5611, HMC5983
Connectors – GPS+I2C, RC-IN, PPM-IN, RSSI, SBus-IN, Spektrum-IN, USART3 ( TxD, RxD, CTS, RTS ), USART2 ( TxD, RxD, CTS, RTS ), FRSky-IN, FRSky-OUT, CAN, USART8 ( TxD, RxD ), ESP8266 ( full set ), SERVO1-SERVO6, USART7 ( TxD, RxD ), JTAG ( SWDIO, SWCLK ), POWER-BRICK ( VDD, Voltage, Current, GND ), BUZZER-LED_BUTTON
MicroSD card reader
RGB LED
Micro USB
WiFi ESP8266 802.11bgn ( Included !) .
This popular add on is a very versatile solution,, you might want to check its wiki as well:http://www.esp8266.com/wiki/doku.php…th-the-esp8266 But don´t be scared, the included WiFi Module is coming ready to go !
JST GH series connectors for easy and robust peripheral connections, DF13 haters will love those !
Dimensions – 36 x 36mm with 30.5 x 30.5mm hole grid with 3.2mm holes
Weight Pixracer – ( include SD and CNC protective case ) 26g
5 kinds of professional flexible silicone cables for almost any peripheral module included.
Power supply – 5-5.5V DC from USB or Power module
Package include:
Pixracer R14 Flight controller x 1
CNC Aluminum alloy protective shell x 1
ESP8266 Wifi module x 1
Safety switcher x 1
Buzzer x 1
Micro SD Card x 1
SD Card reader x 1
Cables set x 1 (For Receiver, GPS, I2C ,Power module , Serial)
Discussion:
http://www.rcgroups.com/forums/showthread.php?t=2576614
