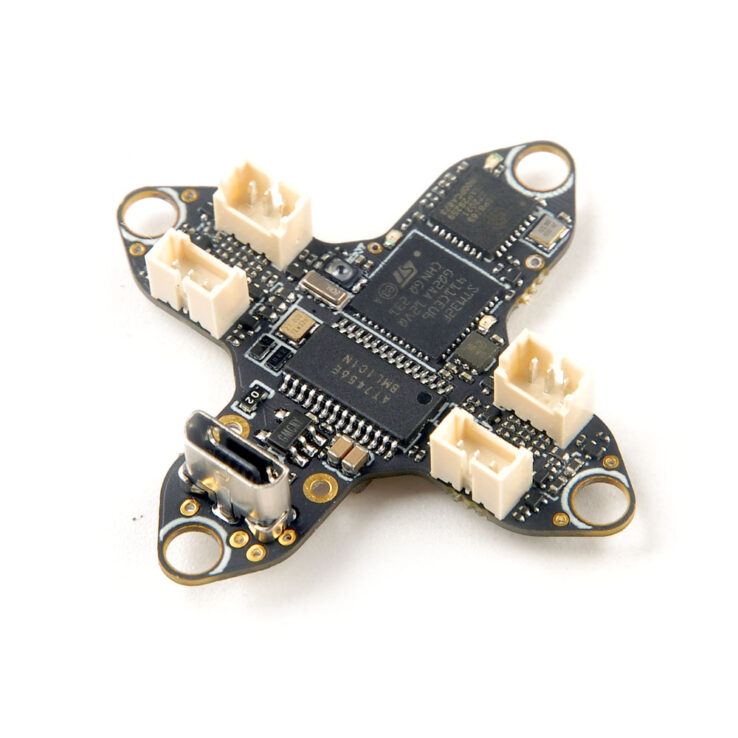

*”ET” and “ER” pads are used for communication with ESP8285, you can connect “TX” of FTDI tool to “ET” pad and connect “RX” of FTDI tool to “ER” pad for upgrade onboard UART ELRS receiver firmware. Need to short connect “+5V” and “E5” pads before that. The CrazyF411 ELRS flight controller comes with integrated UART…

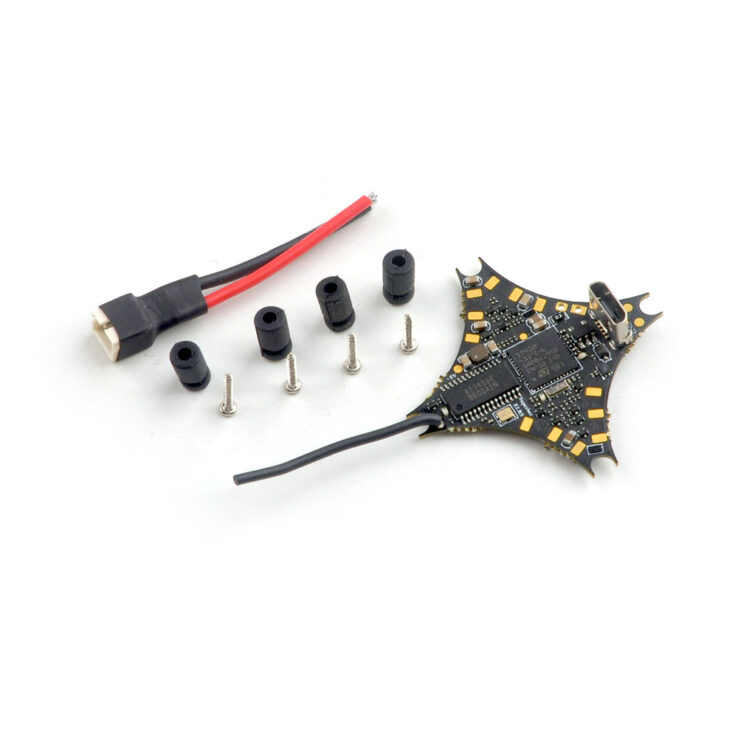

Notes: Due to this flight controller is spare part for Mobula6 HDZERO, the original default device for OSD is “MSP” If you bought this flight controller and used for analog camera, you may need some settings : First connect to betaflight configurator , then move to CLI command, and enter “set osd_displayport_device = MAX7456”, then…

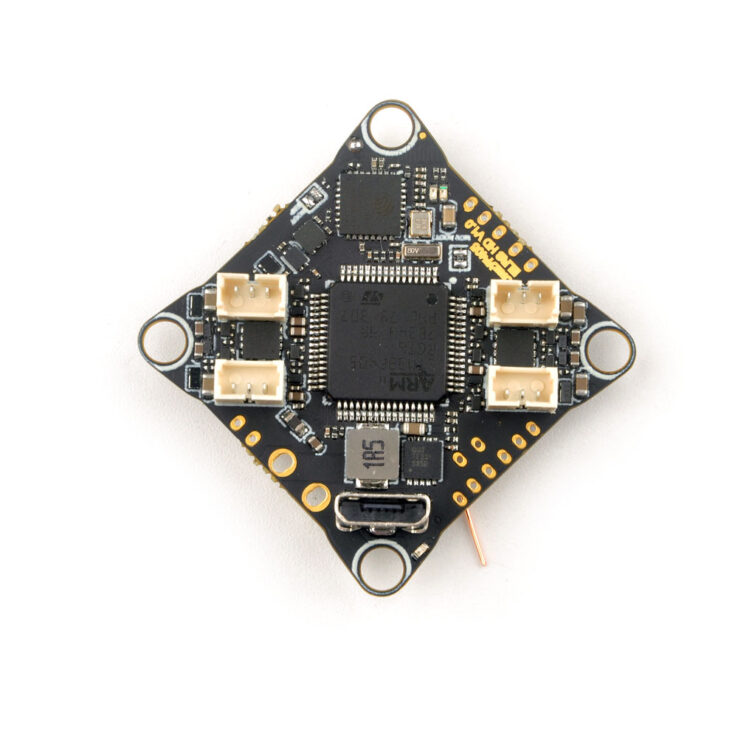

Many thanks to the ExpressLRS team for their help in this flight control design. Specifications: Brand Name: Happymodel Item Name: Pancake 2-6S AIO flight controller Betaflight firmware target: CRAZYBEEF4SX1280 VTX antenna: U.FL Receiver antenna: Ceramic antenna Weight: 5.2g Built-in SPI ELRS 2.4GHz receiver Built-in OPENVTX max power up to 400mw Compatible with 20×20 or 35.5×35.5…
Update log: DiamondF4FR V3.2 version already came with Built-in OPENVTX could support max 400mw output. Please use following vtxtable # vtxtable vtxtable bands 6 vtxtable channels 8 vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725 vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866…
