X14 ELRS flight controller is the updated version for X12ELRS PRO, this flight controller is based on STM32G473 MCU, provide more UARTs, built-in 12A 4-IN-1 ESC and Serial ELRS receiver, also comes with OPENVTX max power up to 400mw. It’s a good option for 75mm/85mm 2S whoops building. FC MCU: STM32G473CEU6 Gyro: ICM42688P Blackbox memory: 16MB Sensor:…
Tips: Onboard VTX can only work when battery was plug. And low power of vtx when disarmed was actived. So the vtx is very lower nearly 0 power out when drone was not armed, you can change power level value. This the first AIO 5-IN-1 flight controller based on G473 MCU platform from Happymodel, Built-in…
Happymodel’s new 5.8GHz Crown LDS antenna with RF design utilizes high precision 3D laser metallization technology to ensure consistent performance for each antenna. The ultimate lightweight design optimizes Micro FPV scene applications. This is a performance 5.8GHz antenna tailored specifically for whoop pilots. Specifications: Frequency range (MHz): 5500-6000 Polarization options: LHCP（grey color wire） or…
Brand Name: Happymodel Item Name: Canopy for Mobula7 O4 and DJI O4 Lite with angle adjustable Material: PP Color option: Transparent black Net Weight: 1.48g Camera angle adjustable Flywoo ND Filter available Best for DJI O4 air unit camera (Lite camera) Package Included: 1 set of Canopy 2 x M1.4×3 screws Official aliexpress store link:…
The M8 Freestyle HDZERO 80mm Digital HD Micro FPV whoop comes out now . It comes with the new HDZERO AIO15 2S 5-IN-1 flight controller. The new Happymodel RS1102 KV13500 motor with HQPROP 45mm propellers, bring a smooth and powerful FPV experience. Features: Equipment with the New HDZERO AIO15 5-IN-1 flight controller 2S battery support…
Notice before buy:According to DJI’s warranty policy, if there is a problem with the DJI O4 Air unit installed on the BNF Drone, it needs to be sent back to China mainland for warranty, please noticed. The Happymodel Mobula7 O4 micro FPV whoop comes out now . It comes with the new DJI O4 air…
Brand Name: Happymodel Item Name: Camera mount bracket for DJI O4 Air unit (Lite camera) Material: PP Color option: Transparent black Net Weight: 0.9g Camera angle: 30degree Best for DJI O4 air unit camera (Lite camera) Package Included: 1 x Camera mount bracket 4 x M1.2×10 screws
Mode: RS1102 KV options: 10000KV or 13500KV Configu-ration:9N12P Stator Diamter:11mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*14mm Weight(g):2.8g Recommend battery: 2S 10000KV is the original motor for Mobula7 O4
New 80mm Mobula7 O4 frame durable ,low position FC mounted Specifications: Brand Name: Happymodel Wheelbase: 80mm Weight: 7.75gram Color: Transparent black Max propeller: 45MM Compatible with both 1s and 2s battery
Binding procedure: Notes: If the betaflight firmware is 4.5.1 and you got failsafe when Core temperature is overheat. Here is the Solution to fix the problem, thanks Ryan Quellet Steps: Connect to betaflight configurator Then copy the following command to CLI command: cpu_overclock = 108MHZ save Description: Happymodel Mobula7 Freestyle BNF is a 75mm…
Binding procedure: Comparsion of Mobula6 HDZERO version Description Happymodel Mobula6 Freestyle HD BNF is a 65mm low light BNF using the HDZero AIO5 designed for freestyle whooping. It is under 20grams Specifications Weight: 19.6g Recommended Battery: 1S 300mAh Flight time: around 3minutes Factory SKU:5A10095 Propeller Size: 31mm AIO Flight controller MCU: STM32F411 (100MHz, 512K…
Brand Name: Happymodel Item Name: Camera mount bracket for Mobula6 and Mobula7 Freestyle HD Material: PP Color option: Transparent Net Weight: 0.4g Camera angle: 25degree Best for HDZERO LUX camera and Mobula6 Freestyle HD Package Included: 1 x Camera mount bracket 3D Print file download: Camera holder bracket 3d print file for HDZERO Lux Camera…
Binding procedure: Comparsion of Mobula6 HDZERO version Description The Happymodel Mobula6 Race HD BNF is the first 65mm HD brushless tiny whoop that weighs less than 19.4g. With tiny whoops, every gram makes a large difference in flight performance. To achieve such a low weight, HDZero has developed the world’s first 5-in-1 AIO that…
Manufacturer: RunCam Model: Nano7 Sensor Size: 1/3 inch Aspect Ratio: 4:3 Shutter: Rolling Shutter FOV: D:150° H:120° V:98° Input: 3.3V~5V Power Consumption: 0.5W Weight: 1.8g (With Cable) Dimensions: L14mm*W14mm*H13mm
Notes: If you click save and reboot from “port” tab of betaflight configurator and found vtx device ready from video transmitter tab is “False”, please don’t worry ,just power cycle for the flight controller , the vtx device ready status would be “true” again. Flight controller SuperX ELRS AIO 5-IN-1 Flight controller MCU:STM32F411CEU6 (100MHZ, 512K…
Features: AIO Flight controller with Serial ELRS Receiver Compatible with HDZERO system Equipment with the lightest brushless motors-SE0702 only 1.49gram HDZERO NEW ECO VTX and Camera ready Smooth and powerful Compatible for 1S Lipo/LIHV Onboard blackbox read Specifications: Brand Name: HAPPYMODEL & HDZERO CO-Brand Model: Mobula6 ECO 2024 Frame wheelbase: 65mm Weight: 23.16 gram without…
Brand Name: Happymodel Item Name: Camera mount bracket for Mobula6 ECO 2024 Material: PP Color option: Transparent white Net Weight: 0.6g Camera angle could adjustable easily Best for Mobula6 ECO 2024 Package Included: 1 x Camera mount bracket 2 x M1.2×5 screws 3D print file download: Camera mount bracket for Mobula6 ECO 2024 and Mobula6…
Used for Mobula6 ECO 2024 Package include: Long Rubber damping ball 4pcs M1.3*10 Screw 1pcs
Notes: The Camera of Mobula6 2024 changed to Runcam Nano7 Camera since Oct 2024 Features: AIO Flight controller with Serial ELRS Receiver and 5.8G Openvtx Super light 1S 65mm Brushless whoop only 17.7g Equipment with the lightest brushless motors-SE0702 only 1.46gram FX17-B 1/3 CMOS 800TVL Camera awesome footage Smooth and powerful Compatible for…
Mobula6 2024 new frame is a ultra lighter 65mm size Brushless Tiny whoop Frame. Compatible most of the 0603/0702/0802 brushless motor. It’s very soft and durable. Specifications: Wheelbase:65mm Weight:2.8g Color option: Transparent black and Transparent white Recommend part list: Propellers: 31mm 3blades or 4blades Motors: 0702 Brushless motor Flight controller : ELRS F4 2G4 or…
Notes: If you click save and reboot from “port” tab of betaflight configurator and found vtx device ready from video transmitter tab is “False”, please don’t worry ,just power cycle for the flight controller , the vtx device ready status would be “true” again. Flight controller SuperX ELRS AIO 5-IN-1 Flight controller MCU:STM32F411CEU6 (100MHZ, 512K…
Brand Name: Happymodel Item Name: Camera mount bracket for Mobula6 2024 Material: PP Color option: Transparent black Net Weight: 0.62g Camera angle could adjustable easily Best for Mobula6 2024 Package Included: 1 x Camera mount bracket 2 x M1.2×5 screws

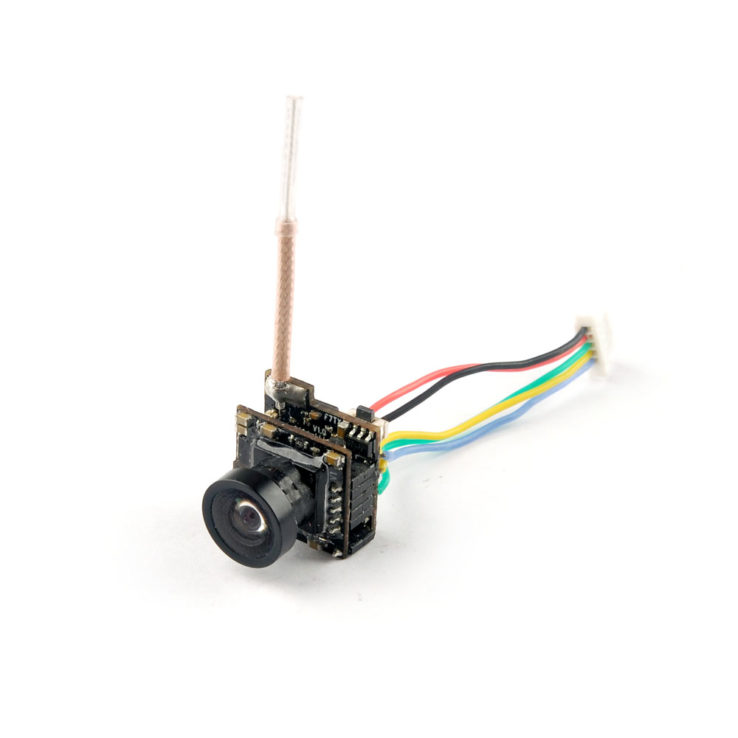

Model:FX17-B Image Sensor: 1/3″ CMOS Horizontal Resolution: 800TVL FOV 150° Signal System: NTSC Net Weight: 1.5g Dimensions: L14mm*W14mm*H13mm
Used for Mobula6/Mobula6 2024 Package include: Rubber damping ball Φ 4.5*Φ 2*L4mm 4pcs M1.2*4 Screw 4pcs
Specifications Connector: IPX/U.FL Cable: RG113 Weight: 0.5g Length: 47mm/60mm/75mm Frequency: 4900 MHz ~5900 MHz S.W.R: <= 2.0 @5700 MHz ~5900 MHz Gain: 2dBi Impedance: 50 ohm Signal Directivity: high-gain Omni-directional antenna

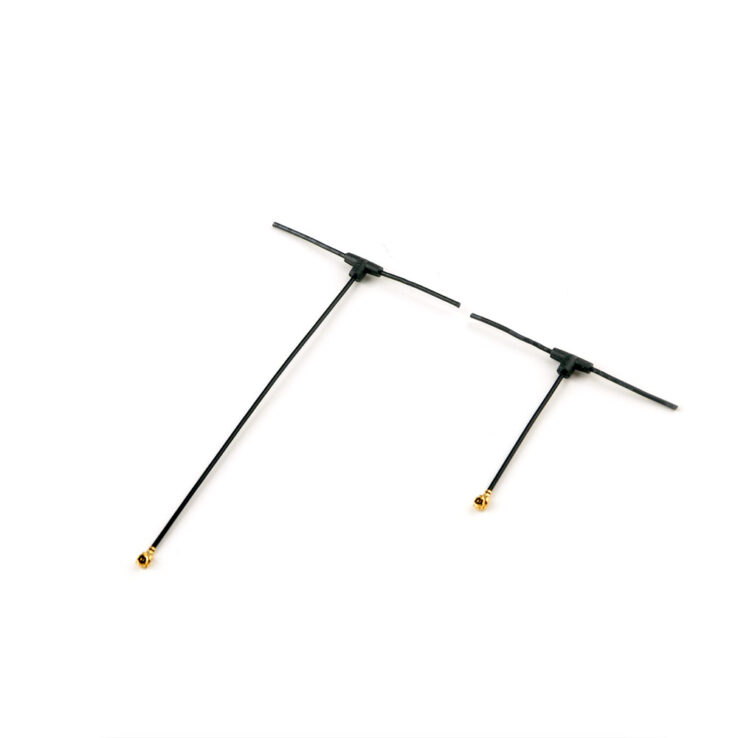

Specifications Connector: IPX/U.FL Cable: RG137 Weight: 0.23g Length: 42 Frequency: 4900 MHz ~5900 MHz S.W.R: ≤2.5 @5700 MHz ~5900 MHz Gain:≤3dBi Impedance: 50 ohm
The Super F405HD ELRS AIO flight controller comes with integrated UART 2.4GHz ExpressLRS receiver and 20A Blheli_s ESC(Bluejay firmware pre-installed) which could support 3-4s battery. Bigger Mosfet could support high to 20A currents and reserved 6 pin socket for DJI HD equipment plug and play. It’s a great solution of build 3-4S HD digital FPV…
The CruxF405HD ELRS AIO flight controller comes with integrated UART 2.4GHz ExpressLRS receiver and 20A Blheli_s ESC(Bluejay firmware pre-installed) which could support 3-4s battery. Bigger Mosfet could support high to 20A currents would be better for 3-4S toothpick drone or long range FPV drone. Reserved 6 pin socket for DJI HD equipment plug and play.…
Binding procedure video: Mobula8 released uart elrs version recently. It comes with a new X12 ELRS Pro v1.1 flight controller, onboard vtx and onboard uart elrs receiver are controlled by ESP32 chip , now you have a free set of UART and you can flash single ExpressLRS firmware for the Mobula8 ELRS . Features: X12…
Specifications: Brand Name: Happymodel Item Name: X12 ELRS Pro AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX Betaflight firmware target: betaflight_4.4.0_STM32F411 VTX antenna: U.FL Weight: 5.1g Size: 30mm*30mm*8mm Flight controller X12 ELRS Pro v1.1 AIO 5-IN-1 Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4 Sensor: ICM42688P(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery…
Notes: Recommend use the battery with lead wire, both A30 and BT2.0 plug battery are compatible. Binding procedure(not same drone ,but binding is the same): Specifications: Brand Name: Happymodel Model: Mobula6 HDZERO V3 Frame wheelbase: 65mm Weight: 25.7 gram without battery Size: 80mm*80mm*50mm UART ELRS v3.0 ready Compatible with 1S Lipo battery or Lihv…
Binding procedure(not same drone ,but binding is the same): Notes: Recommend use the battery with lead wire, both A30 and BT2.0 plug battery are compatible. Specifications: Brand Name: Happymodel Model: Moblite7 HDZERO V3 Frame wheelbase: 75mm Weight: 31.5 gram without battery Size: 98mm*98mm*50mm UART ELRS v3.0 ready Compatible with 1S Lipo battery or…
Notes: Before buying this flight controller, make sure you have good soldering skills and can solder tiny pads. Any flight controller failure caused by welding errors is not covered by the warranty. Update log：Add ESP8285 boot pads better for upgrade onboard elrs receiver firmware Flight controllerSuperX HD ELRS Betaflight 4.4.2 firmware ready Firmware target: CRAZYBEEF4DX MCU:STM32F411CEU6…
Notes: Recommend use the battery with lead wire, both A30 and BT2.0 plug battery are compatible. Specifications: Brand Name: Happymodel Model: Moblite7 Walksnail V3 Frame wheelbase: 75mm Weight: 34.5 gram without battery Size: 98mm*98mm*48mm UART ELRS v3.0 ready Compatible with 1S Lipo battery or Lihv battery Battery Plug: GNB A30 Onboard blackbox ready Package…
Notice: According to DJI’s warranty policy, if there is a problem with the DJI O3 Air unit installed on the BNF Drone, it needs to be sent back to China mainland for warranty, please noticed. Features: Digital HD FPV experience New CrazyF405 ELRS HD flight controller Powerful and Smooth UART ExpressLRS receiver Built-in blackbox for Gyroflow…
Type: 915MHz/868MHz true diversity receiver ESP32 PICO D4, dual SX1276 Antenna connector: IPEX MHF 1/U.FL RF Frequency: 915MHz or 868MHz Telemetry power: 17dbm Receiver protocol: CRSF Input voltage: +5V DC @ “5v” pad PCB size: 21.5mm x 16mm Weight: 1.5gram exclude antenna Built-in a TCXO (temperature compensated crystal oscillator) Firmware target: HappyModel ES900 Dual RX…
Brand Name:Happymodel Specifications: Materials:PA Weight:5g Color:black Suitable for mount DJI o3 Air unit and Vista module
Notice: According to DJI’s warranty policy, if there is a problem with the DJI O3 Air unit installed on the BNF Drone, it needs to be sent back to China mainland for warranty, please noticed. Features: Digital HD FPV experience New CrazyF405 ELRS HD flight controller Powerful and Smooth UART ExpressLRS receiver Built-in blackbox…
Only the v1.0 version of the CrazyF405 flight controller has silk screen printing errors, and the V1.1 and V2.0 versions have been fixed A flight controller with a built-in Serial ELRS receiver and 4-IN-1 Blheli_S 12A ESC specially developed for Digital HD FPV, which removes the analog OSD chip 7456, optimizes the PCB layout,…
Are you tired of the power performance of the 1S whoop you own? Do you want more power to ripping and roaring in your backyard? Yes, here comes Mobula8, which is Happymodel’s first attempt on 85mm frame. It comes with X12 series flight controller, EX1103 KV11000 motor and Gemfan Hurricane 2023…
Frequency: Compatible with both 915MHz and 868MHz Polarization: linear polarization Impedance: 50 Ω Antenna Gain: 0.5dBi Working Temp: -40~80℃ Humidity: 95%~100% RH RF Cable : RG1.13mm Connector: IPEX1 Weight: 0.9 g Cable Length: 46 mm Width: 56mm Compatibility: Happymodel ES900RX , and other 900MHz ExpressLRS receiver with IPEX Connector,TBS CROSSFIRE NANO RX
Presenting New Happymodel Fyujon V2 Board Features -: • All holes are now M3 which can be converted to M2 using rubber grommets • Supports 20mm/25.5mm/30mm mounting • 4 Mounting support structures for added durability • Better shape to avoid sharp edges • Ability to switch between SMD or IPEX antenna (Default antenna is SMD…
New 85mm Mobula8 frame durable ,low position FC mounted Specifications: Brand Name: Happymodel Wheelbase: 85mm Weight: 11.5gram Color: Transparent black Max propeller: 51MM Suitable both 3 hole mount 702/703/802/1102 motors and 4hole 1002/1102/1103 motors

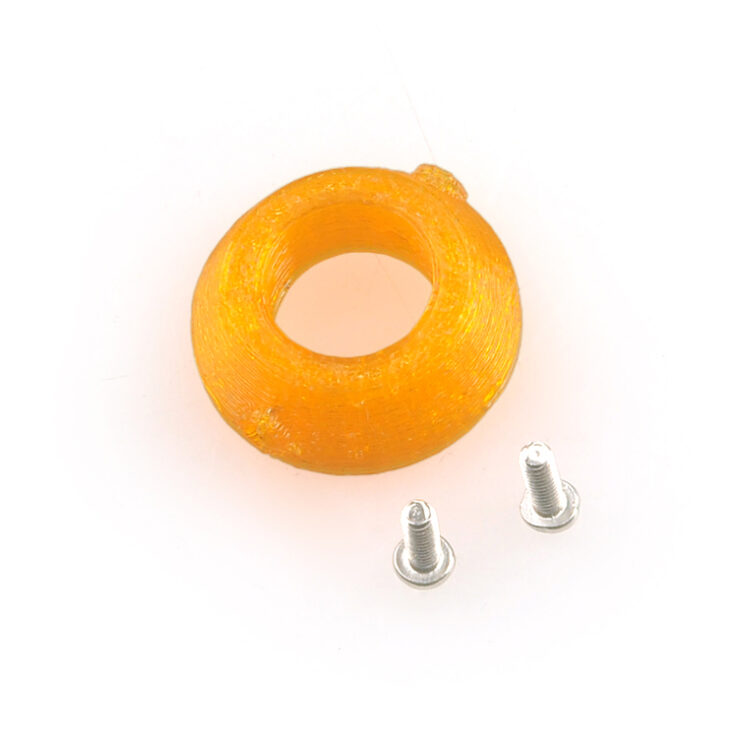

3D Print lens protector for Mobula8 Materials: TPU Weight: 0.3gram We also provide STL file for download: Lens protector for Mobula8
Operating Voltage Range: 11.1V-14.8V Operating Speed(No load): 11.1V:0.26s/60° 14.8V:0.19s/60° Maximum Torque: 110kg.cm Running Current(No load): 11.1V:<400mA 14.8V:<500mA Stall Current: 11.1V:<9A 14.8V:<12A Input signal: PWM:900uS-2100u5 Operating angle range: ±60° Dimensions: 64x33x71.5mm Net Weight: 340g /12oz Water ratings: IPX6

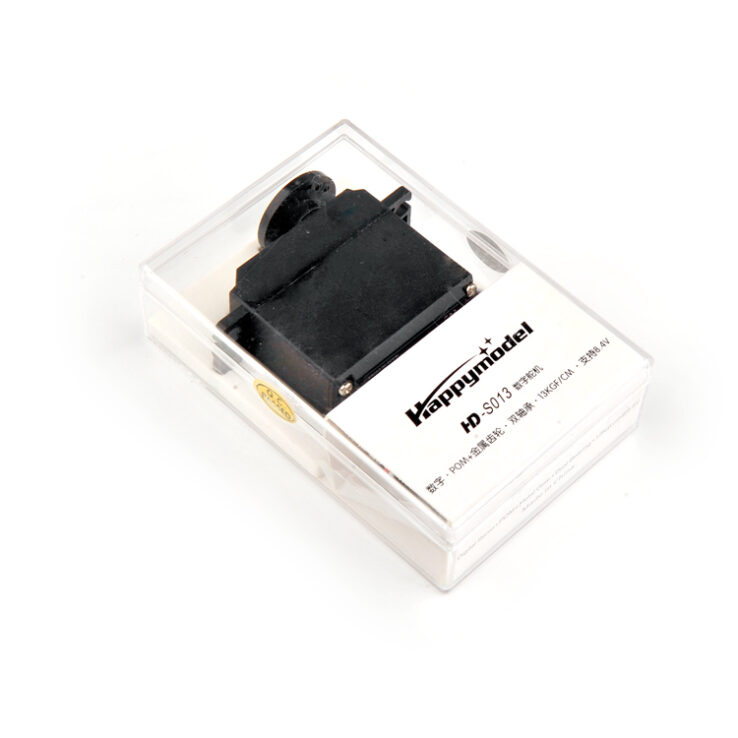

Product Model:HD-S013 Product weight:45g Working voltage: 5V-8.4V Operating temperature: minus 20 degrees Celsius – minus 60 degrees Celsius Plug type: universal orange plug Deadband setting: 4us Servo type: digital servo. Use angle: 180 degrees left and right 90 degrees each Cable length: 30CM PVC material Use of materials: iron core brush motor, double bearings, POM…
Product Model:HD-S 006 Product weight:40g Working voltage: 5V-8.4V Operating temperature: minus 20 degrees Celsius – minus 60 degrees Celsius Plug type: universal orange plug Deadband setting: 4us Servo type: digital servo. Use angle: 180 degrees left and right 90 degrees each Cable length: 30CM PVC material Use of materials: iron core brush motor, double bearings,…
Features: HD Digital VTX system available Walksnail HD or HDZERO optional SPI ELRS or UART ELRS optional Powerful EX1103 KV11000 motors Recommend 2S 450mah/550mah/650mah battery (Not include) Battery tray size: Maximum support for batteries with a width of approximately 17mm and a height of approximately 13mm Specifications: Brand Name: Happymodel Item Name: Bassline Digital HD…
Betaflight configuration: ***Bind procedure is the same like Happymodel EP1/EP2 receiver , need to upgrade your ExpressLRS TX module to V3.X version first. ***Thanks to our team pilot “Jiggy” provide the bind instruction Alternative-Binding-Method-for-UART-Based-ELRS-RX Flight controller Firmware target: CRAZYBEEF4DX4.3.2 MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor: BMI270(SPI connection) Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V) Built-in…
*”ET” and “ER” pads are used for communication with ESP8285, you can connect “TX” of FTDI tool to “ET” pad and connect “RX” of FTDI tool to “ER” pad for upgrade onboard UART ELRS receiver firmware. Need to short connect “+5V” and “E5” pads before that. The CrazyF411 ELRS flight controller comes with integrated UART…
Specifications: Item: Happymodel EPW6 TCXO 2.4GHz pwm receiver ESP8285, SX1280/1281 Antenna connector: IPEX MHF 1/U.FL 6x PWM outputs RF Frequency: 2.4GHz (2400~2480MHz) Telemetry power: 12dbm Receiver protocol: PWM or CRSF Input voltage: +5v~8.4v PCB size: 19mm x 17.5mm Weight: 1.49g / antenna Firmware: Target option1: Generic ESP8285 6xPWM 2.4Ghz RX PWM receiver via 1~6 PWM outputs Target option2:HappyModel_EP_2400_RX CRSF Serial…
Introduce the Bassline , inspired from Our team pilot Nathan Loopz This idea was originally born in 2019, and today we make it into a BNF. Even though we have many excellent Micro Freestyle drones now days, but the Bassline’s performance is still the craziest. Features: X12 5-IN-1 AIO flight controller built-in 2.4G ELRS…

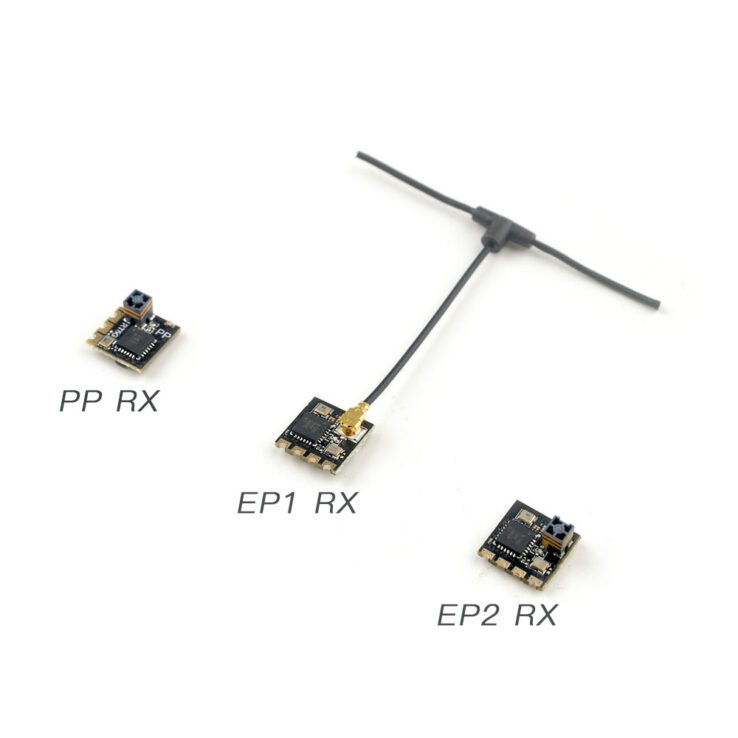

EP1 EP2 ELRS receiver is the hottest Tiny ExpressLRS receiver since it was released. Now the new TCXO version EP series receiver apply “temperature compensated crystal oscillator”, accurate frequency and excellent performance in extreme temperature environments make these TCXO much reliable. EP1 TCXO Receiver Type: ISM2.4GHz ESP8285 MCU SX1280(SX1281)IMLTRT RF Module Omni directional antenna Frequency…
V2.0 update log: Changed to GNB27 connector and V4 frame, no need 3d print battery tray anymore. And changed the propeller to Gemfan 1635-3 propellers. Specifications: Brand Name: Happymodel Model: Moblite7 Walksnail Frame wheelbase: 75mm Weight: 33.5 gram without battery Size: 98mm*98mm*48mm Receiver option: SPI ELRS 2.4GHz SPI FRSKY 2.4GHz Compatible with 1S Lipo battery…
Specifications: Brand Name: Happymodel Model: Moblite7 HDZERO Frame wheelbase: 75mm Weight: 29.5 gram without battery Size: 98mm*98mm*50mm Receiver option: SPI ELRS 2.4GHz SPI FRSKY 2.4GHz Compatible with 1S Lipo battery or Lihv battery Battery Plug: GNB27 Package includes: Item Name Qty Mobula7 v4 75mm frame +Canopy 1 SPI Receiver Option1: SuperbeeF4 Lite FC built-in…
Happymodel EX1002 KV20000 Brushless motor Bench data No-load voltage No-load current No-load Speed KV Voltage (v) Current (A) Thrust (g) Efficiency (g/w) Power (w) Propeller 2 0.5 41820 20910.0 3.7 1.01 12.9 3.452 3.737 Gemfan 2015-2 2-blade propeller 3.7 2.01 23.3 3.133 7.437 3.7 3 32.1 2.892 11.1 3.7 4 40.8 2.757 14.8 3.7 5…
Happymodel EX1103 KV11000 Brushless motor Bench data No-load voltage No-load current No-load Speed KV Voltage (v) Current (A) Thrust (g) Efficiency (g/w) Power (w) Propeller Happymodel EX1103 KV11000 2 0.38 22010 11005 7.4 1.07 23 2.905 7.92 2023R propeller 7.4 2.12 40.9 2.607 15.69 7.4 3.17 56.6 2.413 23.46 7.4 4.05 68.6 2.289 29.97 7.4…
Bassline frame kit Package include: 3K carbon fiber bottom plate x1 3D Printed battery tray x1 Rubber damping balls x8 M2x16 screw for Bassline mount x4 M2x22 screw for Bassline HD mount x4 M2 Nut x8 Battery Anti-skid Mat x1

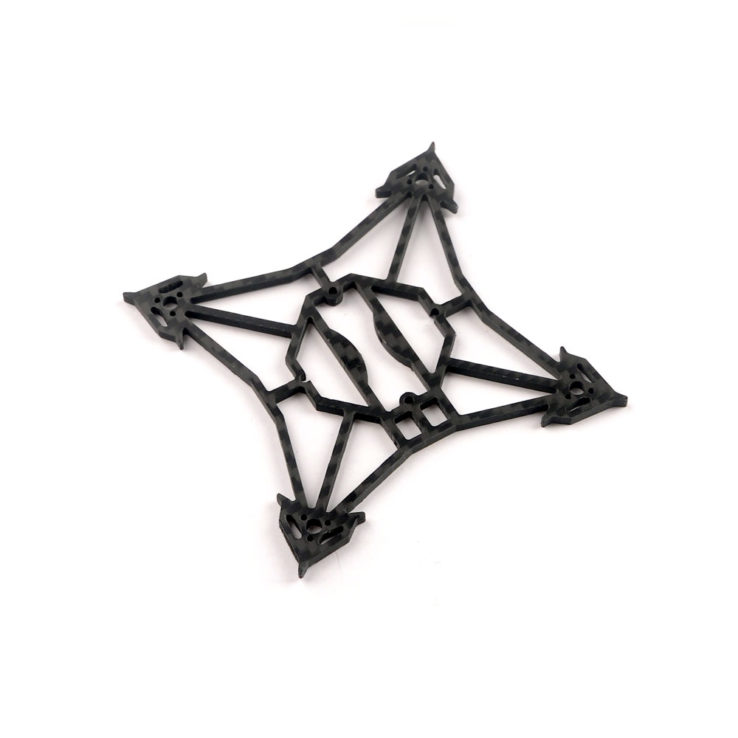

Bassline bottom plate Thinckness:2mm Wheelbase:90mm Weight:7gram
Rubber damping balls x8 M2x16 screw for Bassline mount x4 M2x22 screw for Bassline HD mount x4 M2 Nut x8
Materials: TPU Color: Red Weight: 1.45 gram
Used for Bassline battery fixed 3 sets a package
Introduce the World first true diversity 2.4 GHz ExpressLRS Rx with RF amps Item: Happymodel EP1 Dual receiver true diversity 2.4Ghz ExpressLRS RX ESP32 PICO D4, dual SX1280(SX1281) Antenna connector: IPEX MHF 1/U.FL RF Frequency: 2.4GHz (2400~2480MHz) Telemetry power: >19dbm Receiver protocol: CRSF Input voltage: 3.5v~8.4v Recommend +5V DC @ “+” pad PCB size: 19mm x 14mm Weight: 1gram exclude antenna Firmware: ExpressLRS v3.0.0 rc1 or latest version Target: Unified_ESP32_2400_RX, Append configuration -Generic ESP32 2.4Ghz Diversity RX (EP1 Dual target will be available soon) Firmware update via UART or WIFI
Notes: Due to this flight controller is spare part for Mobula6 HDZERO, the original default device for OSD is “MSP” If you bought this flight controller and used for analog camera, you may need some settings : First connect to betaflight configurator , then move to CLI command, and enter “set osd_displayport_device = MAX7456”, then…

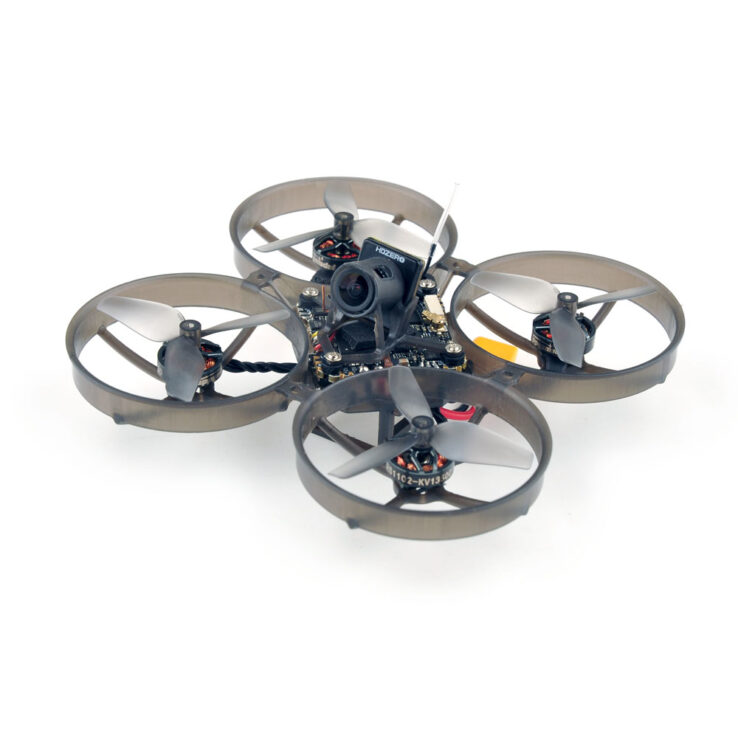

Introducing Mobula6 HDZero, the very first 65mm HD brushless whoop in the World, weights less than 23.5 grams only! We have been working on innovations of Brushless Whoop for a few years. Just like many of you, we are particularly eager to have a 65mm FPV whoop carrying HD VTX. Teaming with HDZero, Runcam, Nick…

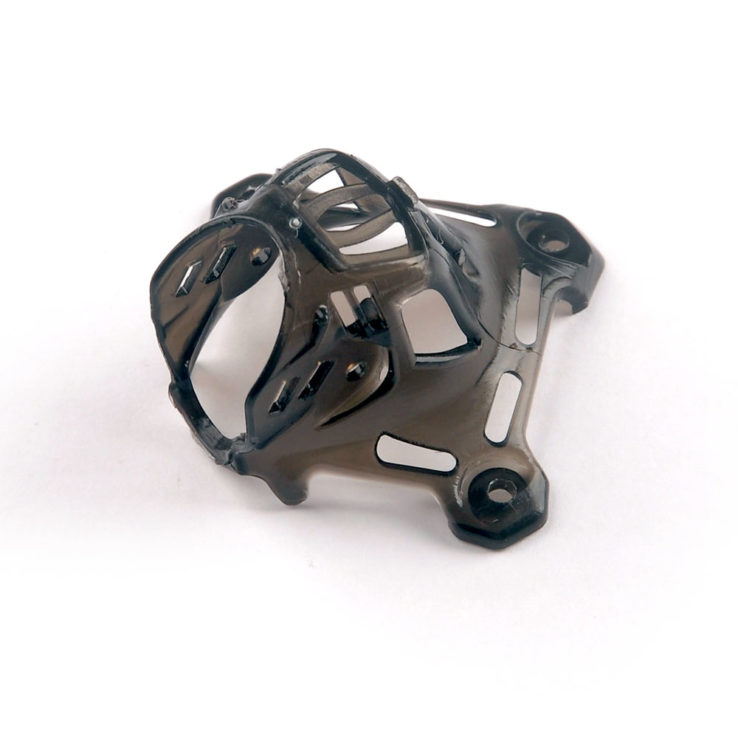

Description: Brand Name: Happymodel Item Name: Camera Canopy for Mobula6 HDZERO/Moblite7 HDZERO/Mobula8 HDZERO/Bassline HDZERO Material: PP Color option: Transparent Net Weight: 0.8g Camera angle could adjustable easily Best for HDZero Nano Lite Camera Package Included: 1 x Camera Canopy 2 x M1.4×3 screws
Specifications: Brand: Happymodel Size:18*15.5*4.5 With Built-in Voltage booster module Working voltage: 3v~4.35v Weight:1.5gram SD Card support max to 32GB SD Card need to use FAT32 Format Notes: Need to careful to insert the TF SD Card , and don’t pull it out while install the battery. Blackbox is a very useful tools to the FPV…
Many thanks to the ExpressLRS team for their help in this flight control design. Specifications: Brand Name: Happymodel Item Name: Pancake 2-6S AIO flight controller Betaflight firmware target: CRAZYBEEF4SX1280 VTX antenna: U.FL Receiver antenna: Ceramic antenna Weight: 5.2g Built-in SPI ELRS 2.4GHz receiver Built-in OPENVTX max power up to 400mw Compatible with 20×20 or 35.5×35.5…

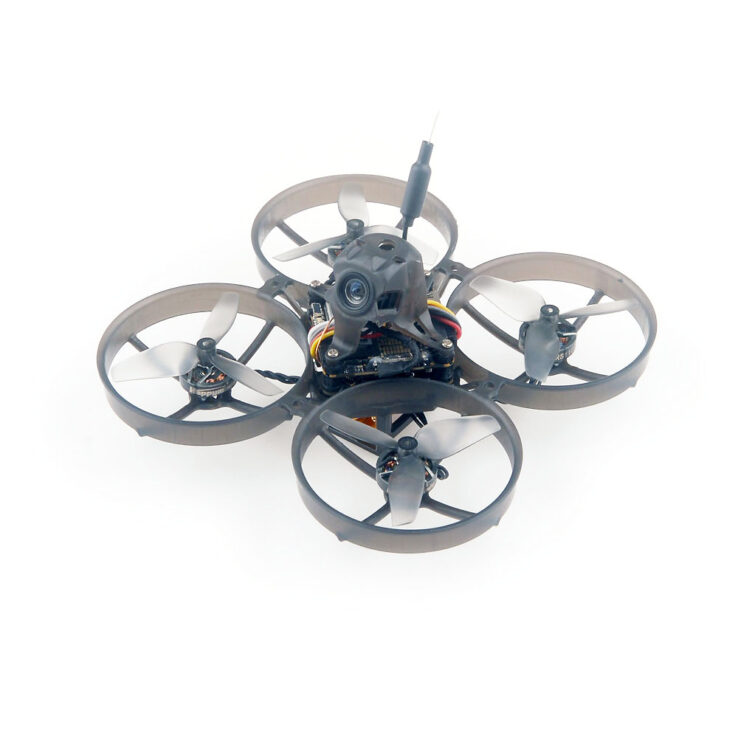

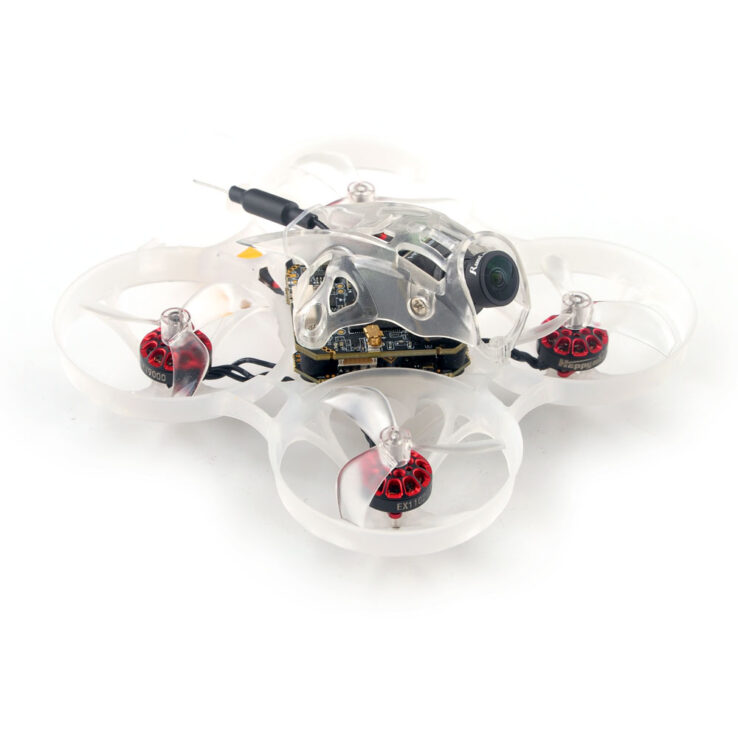

Mobula7 1S HD version is a light and efficiency 75mm brushless whoop which provide 1080P HD video record function. A highly integrated AIO Flight Controller, supports ESC with a maximum current output of 12A. We added blackbox for this 1s 75mm HD recorder whoop. Now it could support gyroflow. Although the external blackbox is not…
The new Mobeetle6 BNF would be the lightest 65mm mass production whoop in the world, hope you will enjoy it . The DiamondF4 Flight controller and 0702 motors were inspired from Angry Don FPV, we really appreciated for his help to Happymodel and to this hobby. We also very expecting to the performance of…
Update log: DiamondF4FR V3.2 version already came with Built-in OPENVTX could support max 400mw output. Please use following vtxtable # vtxtable vtxtable bands 6 vtxtable channels 8 vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725 vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866…
The world first 5-IN-1 AIO flight controller, OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently. It comes with onboard SPI ELRS receiver which support ELRS TX module 2.x firmware, and also provide other receiver option like SPI Frsky receiver which support Frsky D8/D16 , REDPINE and SFHSS. This is an…
The ELRS X2 flight controller comes with integrated SPI 2.4GHz ExpressLRS receiver and 12A Blheli_S ESC which could support 2-4s. Bigger Mosfet could support high to 12A currents would be better for 2-4S toothpick drone or long range FPV drone. And because the 2.4GHz ExpressLRS receiver is equipped with the SX1280 radio frequency chip with…
Happymodel OVX306 VTX are based on the Open source project OpenVTX powered by JyeSmith (EpxressLRS team) The size of the OVX306 tx module is the same size as whoop_vtx and whoop_vtx_hp, and the interface are also exactly the same, which can completely replace whoop_vtx and whoop_vtx_hp. OpenVTx aims to provide firmware with both the SmartAudio…

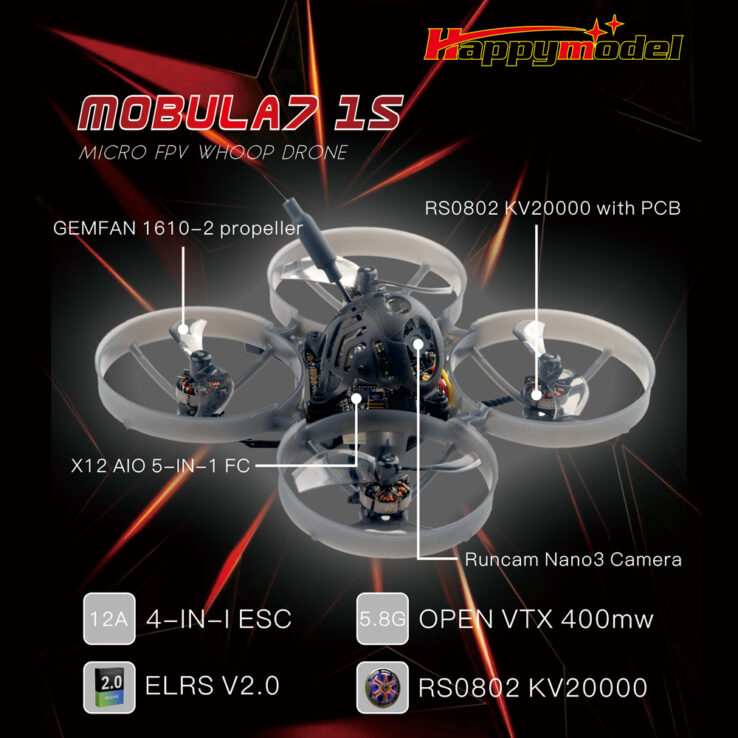

Due to Runcam Nano3 camera was discontinued, now the Mobula7 1s comes with Caddx ant camera since May 2024. The Mobula7 1s with Caddx ant camera we called V2 version. Please noticed . We’re glad to launched our new Mobula7 drone , this time the 75mm whoop based on 1s power. Thanks to the…
Specifications: Brand name: Happymodel Item name: RS0802 brushless motor KV options: 20000KV or 25000KV Shaft Diameter: 1.5mm Configuration: 9N12P Stator Diameter: 8mm Stator Length: 2mm Motor Dimension(Dia.*Len): Φ10.5mm*13.5mm Terminals: JST1.25mm No. of Cells(Lipo): 20000KV and 25000kv are compatible with only 1S lipo Wire length(exclude connector):30mm Weight: 2g Compatible for Mobula7 and Mobula7 HD 1S version,…
New 75mm v4 frame for Moblite7 Mobula7/Mobula7HD 1S ,more durable ,low position FC mounted ,no block USB Specifications: Brand Name: Happymodel Wheelbase: 75mm Weight: 5.4gram Color option: Transparent white or Transparent black Max propeller: 40mm
Specifications: Brand Name: HDZERO and HappyModel Co-branded Model: Mobula7 HDZERO Frame wheelbase: 75mm Weight: 41gram without battery Size: 98mm*98mm*50mm Radio Link System required: ExpressLRS 2.4GHz TX module 2.0 ELRS firmware Compatible with 2S-3S Lipo battery or Lihv battery Recommend Battery: 2S 300/350/450/550/650 mAh 3s 300/350/450 mAh Battery Plug: XT30 Battery holder tray…

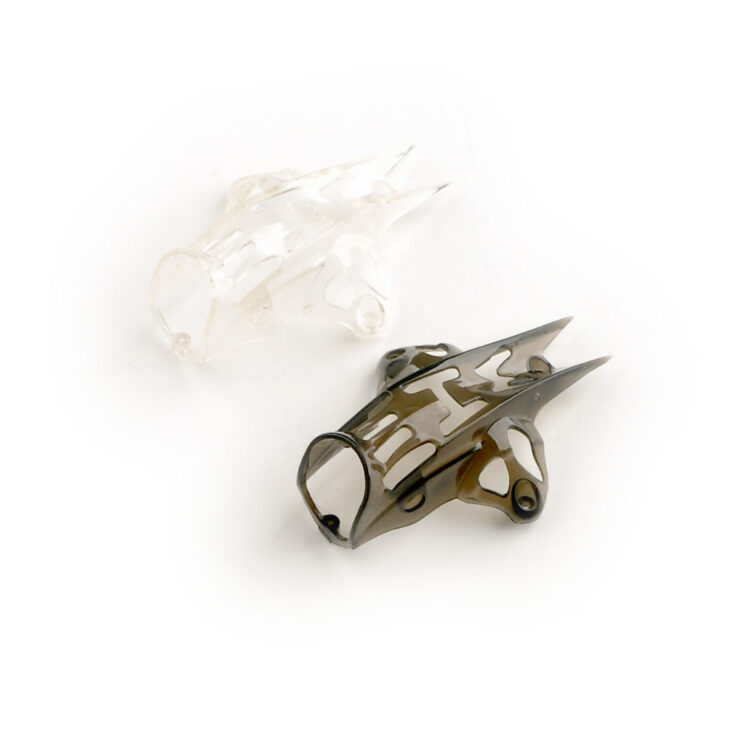

Description: Brand Name: Happymodel Material: PP Color: Transparent or Black Net Weight: 2.4g Original Camera canopy for Mobula7 HDZERO Compatible with Mobula7 v4 frame Camera angle could adjustable easily Package Included: 1pcs Camera Canopy 5pcs Screws
Specifications: Item: Happymodel EPW6 900MHz pwm receiver ESP8285, SX1276 Antenna connector: IPEX MHF 1/U.FL 6x PWM outputs RF Frequency: 868MHz(EU), 915MHz(FCC) Telemetry power: <17dbm Receiver protocol: PWM or CRSF Input voltage: +5V DC @ “+” pad PCB size: 18.5mm x 16mm Weight: 1 g without antenna Default firmware version: ExpressLRS v2.0 Firmware target: DIY_900_RX_PWMP(Factory default firmware),…
Specifications: Item: Happymodel EPW5 2.4GHz pwm receiver ESP8285, SX1280/1281 Antenna connector: IPEX MHF 1/U.FL 5x PWM outputs RF Frequency: 2.4GHz (2400~2480MHz) Telemetry power: 12dbm Receiver protocol: PWM or CRSF Input voltage: +5V DC @ “+” pad(V2.0 version support max to DC 8.4v input) PCB size: 17mm x 14mm Weight: 1.1g with antenna Default firmware version: ExpressLRS…
The ES24TX Pro Micro ExpressLRS TX module is a upgrade version of ES24TX module. Max output up to 1000mw, reserved Cooling Fan and RGB LED module. This Micro TX module support most of the OpenTX radio transmitter that with Micro JR bay. And this time the ES24TX Pro module comes completely assembled before out of…
What is a “TX Backpack”? Some of the ExpressLRS TX modules include an additional ESP8285 chip, which lets us communicate wirelessly with other ESP8285 enabled devices using a protocol called espnow. We call this chip the “TX-Backpack”. The aim of the TX-Backpack is to allow wireless communication between ExpressLRS, and other FPV related devices for…
Update log: The Crux3 1S ELRS v2.0 version comes with ELRS F4 2G4 V3.1 which was built-in OPENVTX could support max 400mw output. Please use following vtxtable # VTX Table # SMARTAUDIO # vtxtable vtxtable bands 6 vtxtable channels 8 vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725…
Specifications: Brand Name: Happymodel Product Name: Camera mount holder for Crux35 and Crux35 HD Materials: TPU Color: Red Compatible with Insta360 go2 and CaddxFPV peanut Weight: 2.8 gram(without screws)
3D print mount holder of Insta360 go2 camera and CaddxFPV peanut for Crux3 and Crux3 1s elrs Color: Red Materials: TPU Weight: 6.7gram Compatible with Crux3 and Crux3 1S ELRS Package include: 3D print mount holder x1pcs M2x20 Screws x4pcs M2 Nuts x8pcs
NOTICED: SPI ELRS version Crux35/Crux35 HDZERO/Crux35 HD were discontinued. The new ELRS V2 version comes with CrazyF411 ELRS AIO flight controller built-in UART ExpressLRS receiver. NOTICED:Loctite 222 screw glue is used during the motor screw installation process, please pay attention when disassembling the motor. CRUX35/CRUX35 HD is an ultra-lightweight 3.5Inch FPV Freestyle FPV Racing Drone,…
Notice: The antenna has been changed to Happymodel Moxon 2.4GHz from Oct.14th 2021 This Slim Pro TX module is designed by Happymodel and based on the open source- ExpressLRS which is a very popular low latency and high packet rate RF module for RC Airplane and FPV Racing drone. Its main hardware architecture is ESP32,…
Since the TBS Tango2 radio is powered by 1S, when an external TX module such as ES24TX Slim Pro needs to run at 1000mw, the original circuit structure cannot maintain normal operation or even turn on. So we designed this power adapter. This set of power adapter consists of two parts, one of which is…
Frequency (MHz): 2400.0 Efficiency (dBi): -2.94 Gain (dBi): 4.18 Efficiency (%): 50.77 Directivity (dB): 7.12 Peak Gain Position (Theta): 0.00 Peak Gain Position (Phi): 270.00 Weight(gram): 5.83 Length(mm)*width(mm): 69*45 Plug type: SMA Package include: Happymodel 2.4GHz Moxon antenna x1pcs
Update log: Mobula6 ELRS 2.4Ghz version comes with Updated ELRSF4 2G4 V3.1 flight controller since 25th Feb V3.1 Version flight controller Updated MPU6000 changed to ICM20689 because of MPU6000 discontinued Onboard VTX changed to OPENVTX support 0mw~400mw Pre-install Betaflight firmware which support ELRS V2.0 TX firmware ExpressLRS is currently the most popular remote control…
The new appearance 0702 brushless motor has been released, and it will be shipped gradually from May 2023. The lightest brushless motors all over the world , the weight is only 1.46gram. You can build an extreme weight tiny whoop with this amazing motors. Great thanks to “Angry Don FPV” for the great job on…
The ELRS X1 flight controller comes with integrated SPI 2.4GHz ExpressLRS receiver and 12A Blheli_s ESC which could support 2-4s. Bigger Mosfet could support high to 12A currents would be better for 2-4S toothpick drone or long range FPV drone. And because the 2.4GHz ExpressLRS receiver is equipped with the SX1280 radio frequency chip with…
Notes: Must work together with a flight controller that supports Smartaudio or Tramp Happymodel OVX300 and OVX303 VTX are based on the Open source project OpenVTX powered by JyeSmith (EpxressLRS team) OpenVTx aims to provide firmware with both the SmartAudio and Tramp protocols. Either protocol can be used on the flight controller and on…
The Crux3NLR Nano LR is a 18650 style Nano Long Range FPV quadcopter BNF . Very simple and convenience, just plug a single 18650 battery and then bind to fly. Crux3 NLR come with ELRSF4 2G4 flight controller which means it built-in ExpressLRS high performance radio link which made you get a better range…

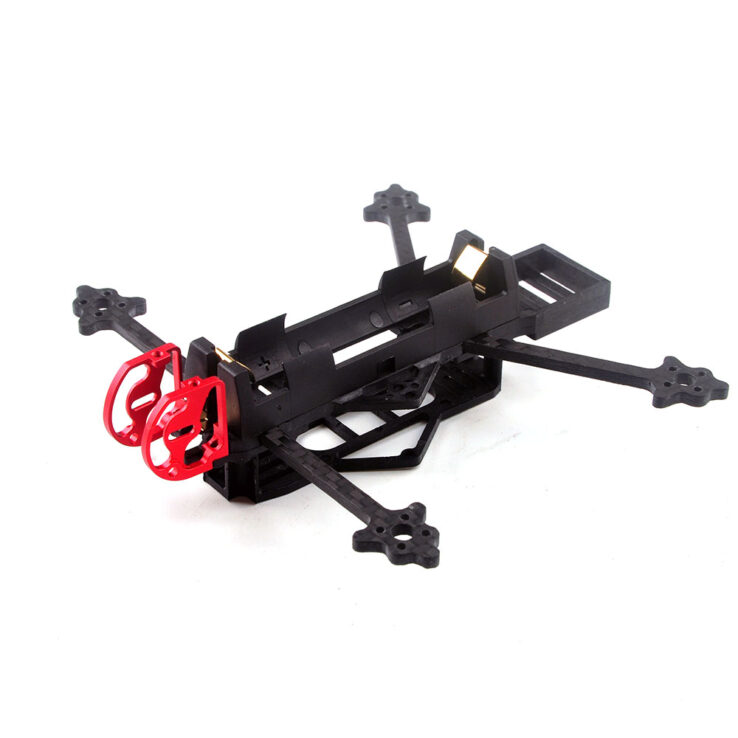

Specifications: Brand: Happymodel Material: 3K carbon fiber Type: 3.5 inch Frame Wheelbase: 150mm Bottom plate thickness: 3mm Weight: 26gram Flight control installation hole: 25.5mmx25.5mm and 20mmx20mm with M2 hole Support camera: 14mm Recommended parts: (not included) Flight controller: ELRS X1 or CrazyF411 Pro Motor: 1404 KV3500 Camera: 14x14mm Propeller: 3.5 inches Battery: 4S 650mah~1100mah …
Specifications: Frequency range(MHz):5500-6000 Polarization: LHCP or RHCP optional Gain(dBi):2.5db Input Impedance(Ω):50 VSWR(5800MHZ):≤1.5 Maximum input power(W):50 Input connector type: IPEX/U.FL Weight: 2.3gram Length: 60mm Package Included: 1x lollipop antenna LHCP is for Crux35 HD version RHCP is for Crux35
Specifications: Brand Name: Happymodel Product Name: Camera mount holder for Crux35 and Crux35 HD Materials: TPU Color: Red Compatible with Naked Gopro/ SMO 4K/ Firefly X Lite Weight:1.6 gram(without screws)
Specifications: Brand Name: Happymodel Product Name: Antenna mount holder for SPI Frsky receiver Materials: TPU Color: Red Weight:0.8 gram(without screws) Compatible with SPI Frsky version Crux35 and Crux35 HD
Brand Name: Happymodel Product Name: Antenna mount holder for SPI ELRS receiver Materials: TPU Color: Red Weight:0.9 gram(without screws) Compatible with SPI ELRS version Crux35 and Crux35 HD
Specifications: Brand: Happymodel Material: 3K carbon fiber Type: 3.5 inch bottom plate Wheelbase: 150mm thickness: 3mm Weight: 15 gram Flight control installation hole: 25.5mmx25.5mm and 20mmx20mm with M2 hole Motor mount pattern : 9mmx9mm M2

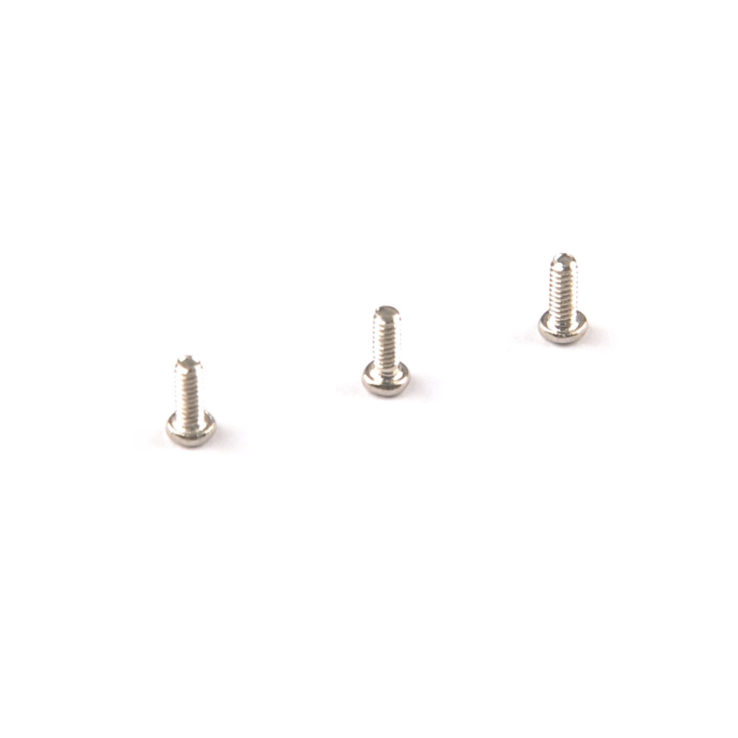

Specifications： Brand Name: Happymodel Item Name: Screws set for Happymodel Crux35 and Crux35 HD Package include: L7*D4*M2 Damping ball 3pcs L4*D4*M2 Damping ball 4pcs M2 Nylon Nut 8pcs M2x20 screw 3pcs M2x18 screw 2pcs M2x14 screw 1pcs M2x10 screw 4pcs
Specifications: Brand Name: Happymodel Item Name: M2 alloy Standoff for Crux35 and Crux35 HD Materials: Alloy aluminum Color: Black Dimension: M2*D4*L23mm Package include: 4pcs M2*D4*L23 Black standoff 4pcs M2*6 screws 4pcs M2*8 screws
Specifications: Brand: Happymodel Material: 3K carbon fiber Type: 3-inch Frame Wheelbase: 132mm Size: 128*126mm Arm thickness: 3mm 18650 battery box Flight control installation hole: 25.5×25.5mm and 20mmx20mm Support camera: 14mm Recommended parts:(not included) Flight control: 5A_ AIO Motor: 1202.5 KV11500 Camera: 14x14mm Propeller: 3 inches Battery: 18650-3000mah

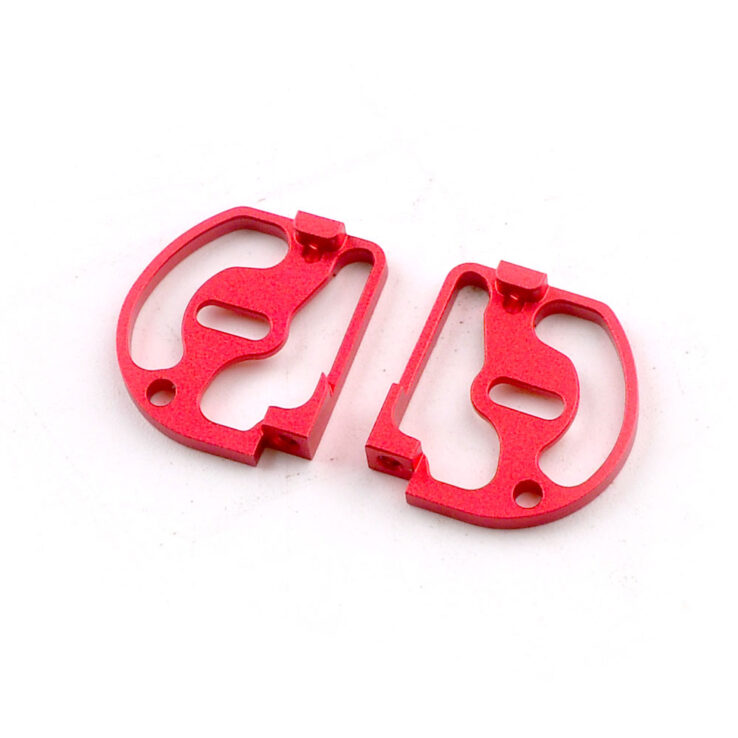

Specifications: Brand Name: Happymodel Material: CNC alloy aluminum Weight: 1.6gram Color: Red Package include: Camera mount holder x2 pcs
Specifications: Brand Name: Happymodel Material: Nylon Weight: 9.6gram Compatible with 20mmx20mm or 25.5mmx25.5mm flight controller package include: Middle Plate x1pcs Bottom Plate x1pcs
Specification: Material: ABS Color: Black Weight: 8.3g Size: Approx. 76x20x15mm Quantity:1pcs Features: Made of ABS material, lightweight, convenient to carry Easy to install Suitable for 1×18650 battery Crux3 NLR original battery holder Package Contents: 1 x Battery Case Holder
Specification: Brand Name: Happymodel Model: Crux3 NLR Item Name: Anti-vibration Standoff & Screws Combo Set Application: Original replace part for Happymodel Crux3 NLR Package Included: 4x Long Anti-vibration Standoff L7*D4*M2 4x Screws M2x16 12x M2 Nuts
Specification: Brand Name: Happymodel Model: Crux3 NLR Item Name: Carbon fiber Arm Thickness: 3mm Application: Original replace part for Happymodel Crux3 NLR Package Included: Front Arm x1 Rear Arm x1

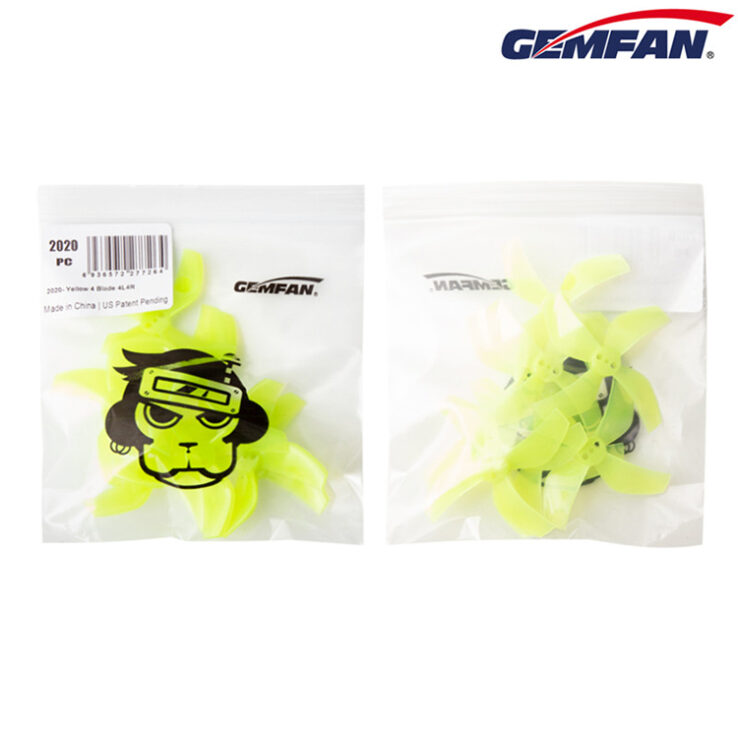

Brand Name: Gemfan Material: PC Weight:0.48g Pitch:0.9in Prop Disk Diameter:75mm/3’ Center Thickness:5mm Center Hole Dia:1.5mm Colors: Black
This Slim TX module is designed by Happymodel and based on the open source- ExpressLRS which is a very popular low latency and high re-flashed rate RF module for RC Airplane and FPV Racing drone. Its main hardware architecture is ESP32, ESP8285 and SX1280 RF chip. The ES24TX Slim module is a complete solution which…
V3.1 and V3.3 Version Update log: V3.1 version comes with ICM20689 gyro and V3.3 version comes with BMI270 or ICM42688P gyro due to MPU6000 was discontinued Onboard VTX changed to OPENVTX support 0mw~400mw Pre-install Betaflight firmware which support ELRS V2.0 TX firmware Firmware, hex file and default diff download http://www.happymodel.cn/index.php/2022/02/23/elrsf4-2g4-v3-1-flight-controller-firmware-and-default-factory-diff/ The world’s first AIO…
This is a power distribution board that solves the defect of the external T-lite dedicated ExpressLRS TX module 1S battery power supply. It does not need to be soldered, plug and play. You need to disassemble the T-lite remote control shell. Please be careful not to short-circuit the installation.
Notes: Due to the small internal space of T-lite Radio, please install the external distribution board and ExpressLRS Lite module carefully, especially not to short-circuit any electronic components. We are not responsible for any losses caused by installation errors. Specific Lite 2.4GHz ExpressLRS TX module for Jumper T-lite is coming out now. This Lite TX…
The World first AIO 5in1 whoop flight controller built-in Expresslrs receiver is coming out now. This F4 flight controller built-in 5A esc , VTX, OSD , high performance 900MHz expresslrs receiver, it’s best for 1S Long Range and Tinywhoop. Specifications: Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Original whoop size compatible Power supply:…
Notice: ES24TX shipments will include Molding JR Bay case from May 25th. This Micro TX is designed by Happymodel and based on the open source- ExpressLRS which is a very popular low latency and high re-flashed rate RF module for RC Airplane and FPV Racing. Its main hardware architecture is ESP32, ESP8285 and SX1280…
Specifications: Brand Name: Happymodel Materials: ABS Color: Black Standard JR Bay dimension Weight: 20gram Compatible with Happymodel ES24TX / ES24TX PRO / ES900TX / ES915TX TX module. Reserved cooling fan installation position, support 20x20x6mm fan.
Specifications: Brand Happymodel Size 20mmx20mmx6mm Working voltage DC 5V Working current <80ma @DC5V Speed 1300RPM Plug SH 1.0 2pin

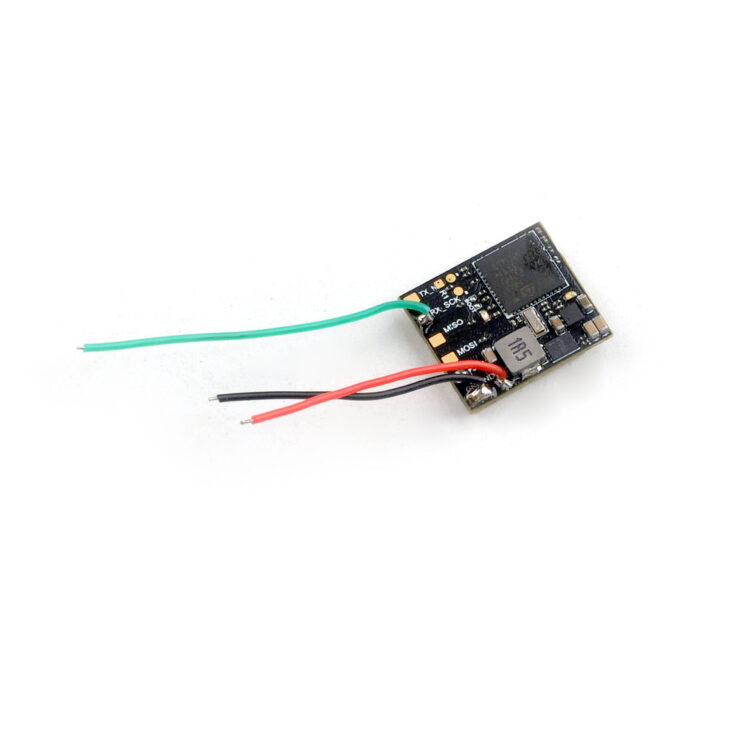

The Happymodel 2.4GHz ELRS nano series receiver is an open source program based on ExpressLRS, we have 3 types rx module released. The PP RX is designed by @Jye Smith from ExpressLRS development team. Its main hardware architecture is STM32L432KBU6 MCU and SX1280 RF chip. It has a built-in ceramic antenna, which is super…
Frequency (MHz) 2400.0 Efficiency (dBi) -0.89 Gain (dBi) 2.23 Efficiency (%) 81.46 Directivity (dB) 5.12 Peak Gain Position (Theta) 180.00 Peak Gain Position (Phi) 330.00 Efficiency ThetaPol (%) 20.90 Efficiency PhiPol (%) 60.56 Upper Hem. Efficiency (%) 39.93 Lower Hem. Efficiency (%) 41.54 Connector IPEX/IPX/U.FL Antenna width 52mm Antenna length 40mm/90mm(optional)
Frequency: 915 MHz or 868MHz optional Polarization: Horizontal polarization Impedance: 50 Ω S.W.R.: <= 1.7 Antenna Gain: 2.0DBi Working Temp: -40~80℃ Humidity: 95%~100% RH RF Cable : RG1.13 Connector: IPEX1 Weight: 1 g Cable Length: 85 mm Width: 42mm~44mm Compatibility: Happymodel ES900RX , TBS CROSSFIRE NANO RX
Frequency: Comaptible with both 915MHz and 868MHz Polarization: linear polarization Impedance: 50 Ω Antenna Gain: 2.5dBi(915MHz) 1.5dBi(868MHz) Working Temp: -40~80℃ Humidity: 95%~100% RH RF Cable : RG1.13 Connector: IPEX1 Weight: 3.57 g Cable Length: 80 mm Width: 140mm Compatibility: Happymodel ES900RX , and other 900MHz ExpressLRS receiver with IPEX Connector,TBS CROSSFIRE NANO RX
Frequency: 915 MHz or 868MHz optional Polarization: Horizontal polarization Impedance: 50 Ω S.W.R.: <= 1.7 Antenna Gain: 2.0DBi Working Temp: -40~80℃ Humidity: 95%~100% RH RF Cable : RG1.13 Connector: SMA Weight: 6.7 g Cable Length: 85 mm Width: 138 mm(915MHz) 155mm(868MHz) Compatibility: ES900TX and ES915TX and ES868TX
ES915TX 3D Printed JR Bay mounting box ES24TX 3D Printed JR Bay mounting box New version JR Bay mounting box for ES24TX and ES915TX
ES900 RX ES900TX MCU ESP8285 ESP32+ESP8285 RF Chip SX1276IMLTRT SX1276IMLTRT Antenna plug IPEX1 SMA Dimension 12mm*12mm*3mm 55mm*39mm*11mm Weight 0.6g / Firmware upload Betaflight pass-through or Wifi Wifi or Configurator ES900TX and ES900RX modules are a set of Long Range 915MHz/868MHz(optional) wireless transmission equipment developed and designed based on the open source software ExpressLRS.…
Chip Model: uBlox NEO-M8N Features: GPS+SBAS or GPS+GLONASS+SBAS Position Accuracy: 2.0 m CEP Sensitivity2 Tracking & Nav: –167 dBm Cold starts: –148 dBm Hot starts: –156 dBm Update rate: 5HZ Default, up to 10HZ Baud rate: 57600 Size: 20mm*20m*6mm Best for Long Range FPV Weight: 6g Cold start waiting time: 0.5~3minutes Warm start waiting time:…
Mode: EX1404 KV option: KV2750 KV3500 KV4800 Configu-ration:9N12P Stator Diamter:14mm Stator Length:4mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ17.8mm*17.6mm Weight(g):8.7g No.of Cells(Lipo): KV2750 compatible with 4S Lipo KV3500 compatible with 3-4S Lipo KV4800 compatible with 3S Lipo Happymodel EX1404 Brushless motor Bench data No-load voltage No-load current No-load Speed KV Voltage (v) Current (A) Thrust (g) Efficiency (g/w)…

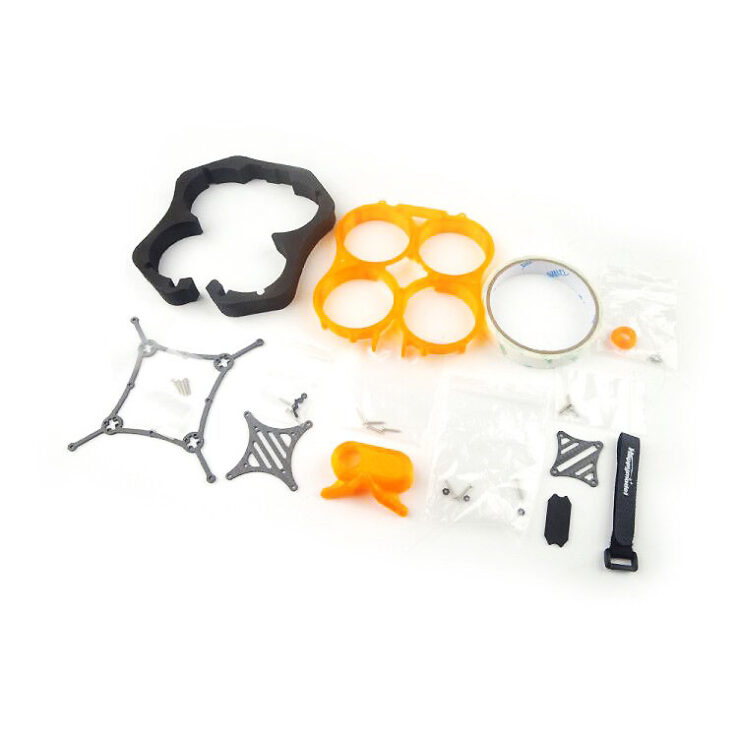

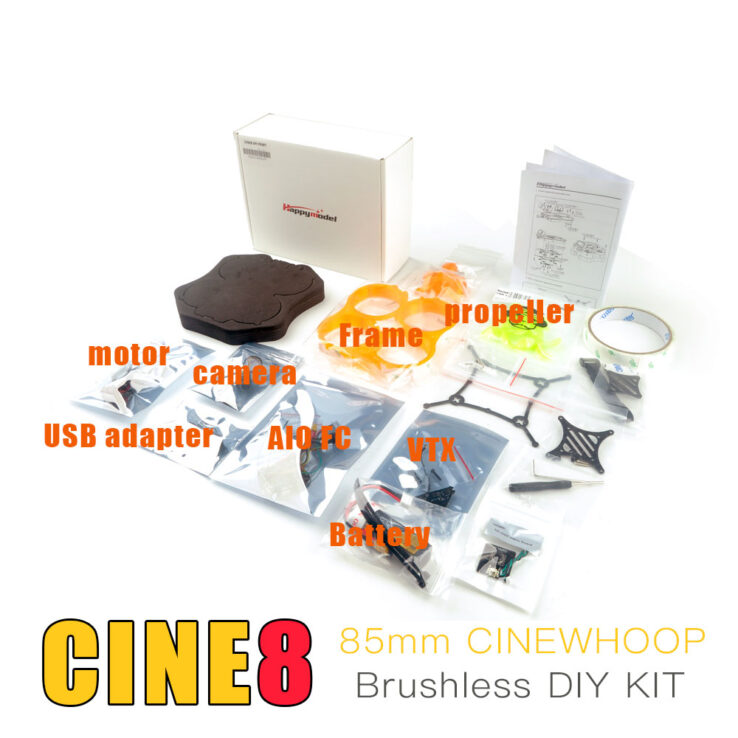

This Kit is very easy to build , no solder work any more, just assemble then plug and play . Very cheap but equipped with high-performance and stable components. The frame is formed by high-precision TPU 3D printing, fixed with carbon fiber board and the use of integral foam to prevent collision. Every FPV…
Specifications: Materials: TPU Weight: 0.9 gram Color: orange Suitable for Caddx Ant camera
Image Sensor: 1/3″ CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE:4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES WDR: Global WDR DNR: 3D DNR Dimensions: 14*14mm(with bracket to 19*19mm) Wide Power Input:…

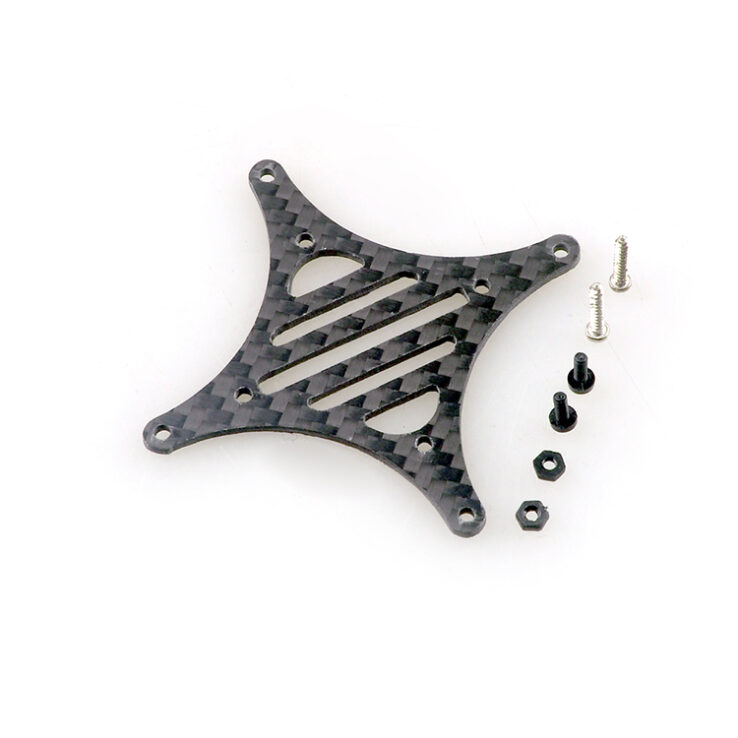

Specifications: Materials: 3K carbon fiber glass Thickness:1.5mm Weight:2.89gram Suitable for CINE8 Frame
Material: PC Weight:0.91g Pitch:2in Props Dia: 50.3mm Center Thickness:4.5mm Center Hole Dia:1.5mm 3 holes Colors: Green
The CINE85 frame is formed by high-precision TPU 3D printing, fixed with carbon fiber board and the use of integral foam to prevent collision. It’s very easy to build and very durable. Specifications: Weight: 32g (not include insta360 go fixing mount) Wheelbase:85mm Materials: TPU + Carbon fiberglass Compatible motors: 1105/1106/1202/1202.5/1203 motors with 9mm hole…
Specifications: Materials: 3K carbon fiber glass Thickness:1.5mm Weight:2.5gram Suitable for whoop size flight controller
Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 2-4S battery input (DC 7V-17V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5V 1A BEC Firmware target:MATEKF411RX Onboard 4in1 ESC MCU upgraded to EFM8BB21 Power supply: 2-4S LiPo/LiPo HV (7v/17v) Current: 12A continuous…
Specifications: Materials: 3K carbon fiber glass Thickness:1.5mm Weight:1 gram Package include: 1 x carbon fiber plate 1 x Lipo battery strap 1 x Anti-skid pad

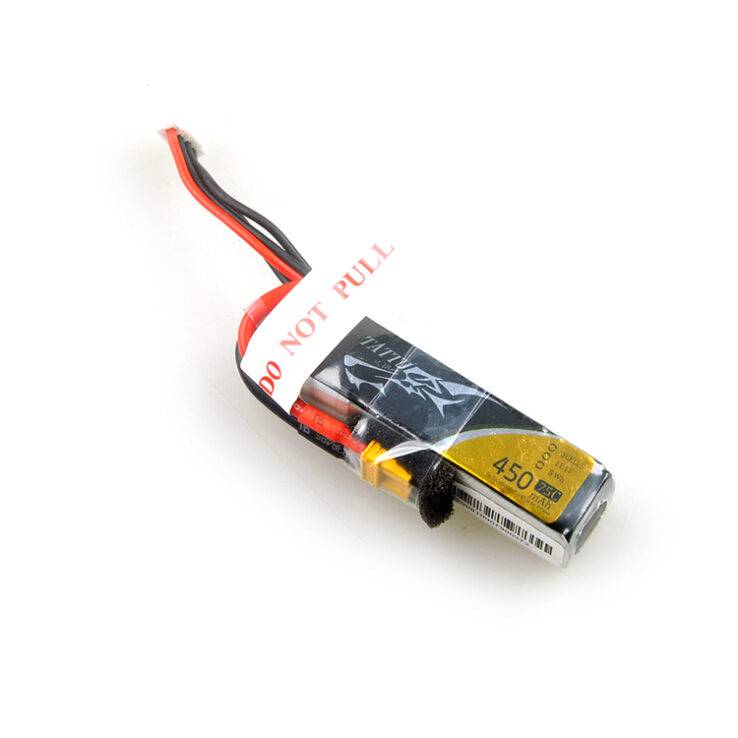

Capacity:450mAh Voltage:11.1v Continuous Discharge Rate: 75C Size: 66mmx21mmx18mm Weight: 45g Connector: XT30
Whoop_vtx_HP already discontinued, view this link to find the replacement OVX306 Small size ,lighter and easy to mount in a regular whoop This is the original vtx for Cine8, you can also use it to upgrade your vtx for brushless whoop Specification: Brand name: happymodel Item name: whoop_VTX_hp Output power: 25~400mw switchable Frequency: 40CH…

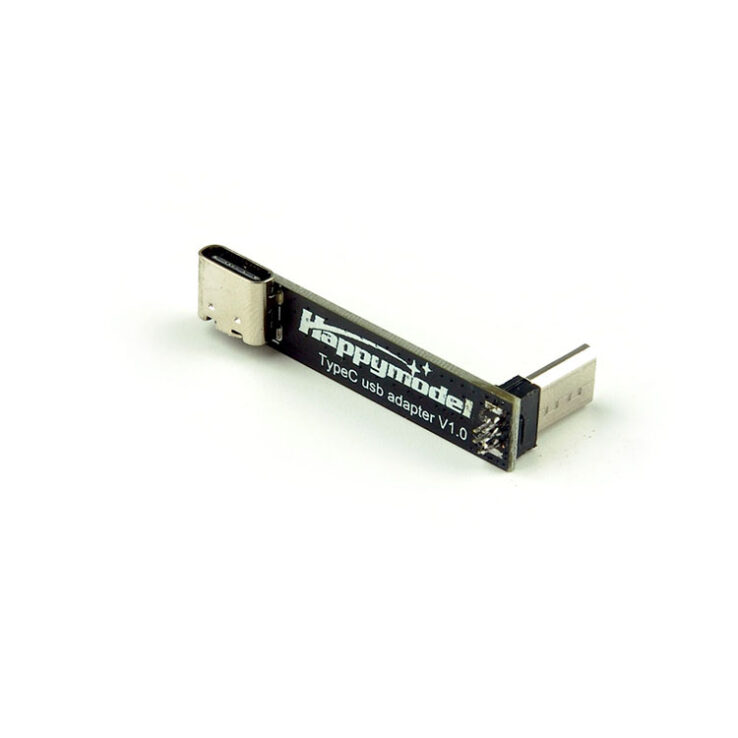

This is a very simple and practical USB adapter, suitable for FPV drones whose conventional USB cannot be inserted into the flight controller Specifications: Length: 40mm Male connector: Micro USB Female connector: Type C Weight: 2gram
Specifications: Materials: TPU Weight: 6.5 gram Color: orange Suitable for Insta360 go
Specifications: Materials: EVA Weight: 3.2 gram Color: Black
Specifications: Materials: TPU Weight: 18.2 gram Color: Orange Wheelbase:85mm
Specifications: Length: 5cm or 10cm optional Quantity: 5pcs Suitable for DiamondF4 flight controller, CrazybeeF4 V3.1 flight controller , CrazyF411 flight controller, Speki+ receiver Package included: 5 x 10cm length 2.4G Receiver Antenna Or 5 x 5 cm length 2.4G Receiver Antenna
Green color is 100mm length for Moblite7 Red color is 90mm length for Moblite6 Weight::0.6g Length: 90mm(Moblite6) 100mm(Moblite7) Compatible for Moblite6 and Moblite7
Brand name: Happymodel Item name: EX0802 brushless motor KV: 19000KV Shaft Diameter: 1.0mm Configuration: 9N12P Stator Diameter: 8mm Stator Length: 2mm Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm No connector No.of Cells(Lipo): 1S Lipo/Lihv only Wire length: 30mm Weight: 1.7g Features: The lightest 0802 brushless motors around the world only 1.7g Double E-clip design, prevent Motor bell to flying…
Used for Moblite7 Package include: Longer Rubber damping ball 4pcs M1.2*4 Screws 4pcs

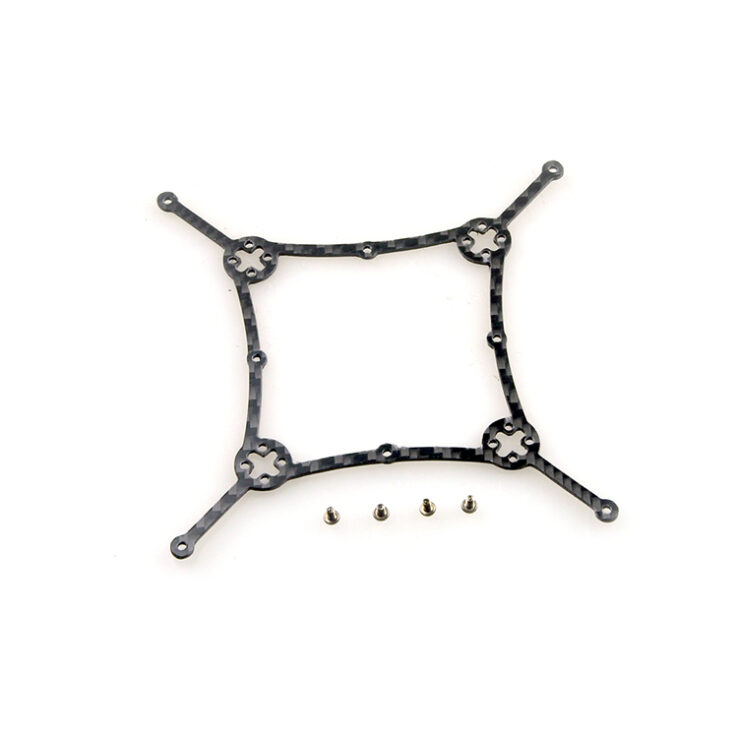

Specifications: Brand name: Happymodel Wheelbase:75mm Weight:4.4g Color: Transparent Beige

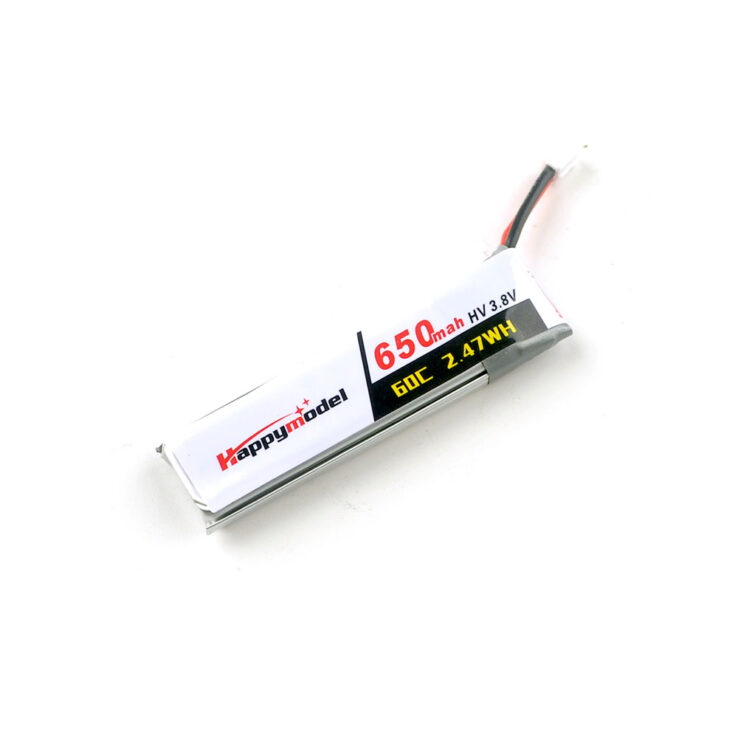

Notes: Moblite7 original battery would Change to be Happymodel Brand from April 14th 2021 Brand Name: Happymodel Capacity:650mAh Voltage:3.8v Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 60mmx18mmx8mm Weight: 16g Connector: PH2.0

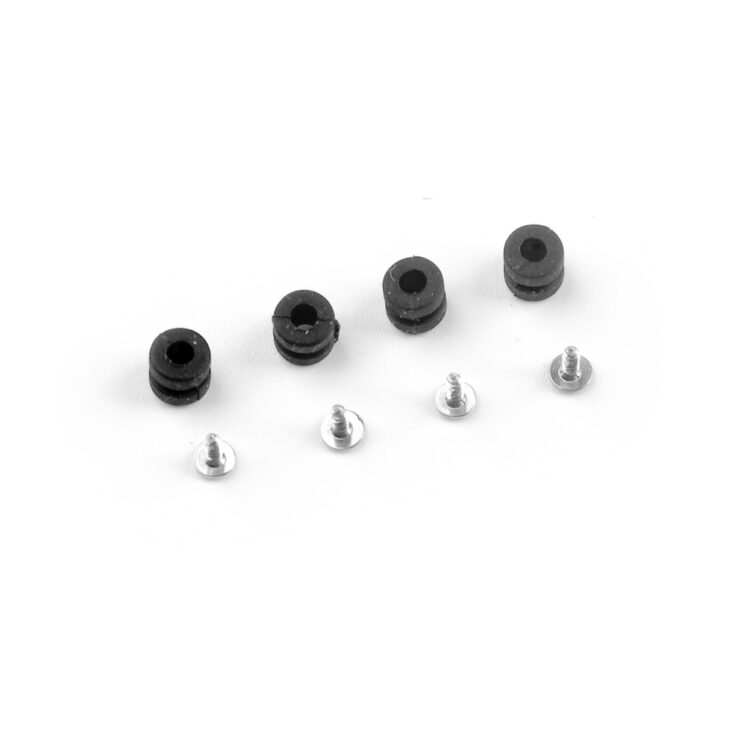

Used for Moblite6 Package include: Short Rubber damping ball 4pcs M1.2*4 Screws 4pcs
Brand Name: HQPROP Length: 40mm Product Material: PC Color: Green Inner Diameter: 1mm Shaft Weight: 0.25g
Official Camera Fixing Holder for Moblite6 and Moblite7 Thanks for the design from MCHELI Canopy-Moblite6 7-from Don Johnson Thanks for the canopy design from our official team pilot Angry Don FPV
Update log: The Moblite6/7 Frsky version which comes with DiamondF4FR V3.2 version already Built-in OPENVTX could support max 400mw output. Please use following vtxtable # vtxtable vtxtable bands 6 vtxtable channels 8 vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725 vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771…
Update log: The Moblite6/7 Frsky version which comes with DiamondF4FR V3.2 version already Built-in OPENVTX could support max 400mw output. Please use following vtxtable # vtxtable vtxtable bands 6 vtxtable channels 8 vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725 vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771…
The BeecoreX is a ultimate flight controller for Brushed Tinywhoop , it include F4 FC, vtx , ESC, frsky receiver and betaflight OSD. It makes very easy to build a brushed tinywhoop. You only need to buy an FPV camera and brushed motors ,frame and propeller and then plug and play , No soldering require…
CrazyF411 pro is a highly packed 6.3g 2-4S AIO F4 flight controller with built in 20/25A per channel ESC and diversity receiver. Low latency D8/D16 Futaba S-FHSS Redpine protocol with dual IPEX UFL Antenna (with Power amplifier) Large soldering pads with 4 angled motor connector (not soldered) 2 complete UART (UART 1 with inverted PX…
Notes： SPI Frsky version comes with the new X12 FRSKY AIO flight controller now SPI Flysky version comes with Betaflight 4.2.2 firmware . Bind code is “Bind_rx” in the CLI command SPI DSMX version comes with Customized Betaflight 4.3.0 firmware . Bind code is “Bind_rx” in the CLI command. The receiver firmware of RXSR version…
Specifications: Mode: EX1202.5 KV option: KV6400 KV8000 KV11000 Configu-ration:9N12P Stator Diamter:12mm Stator Length:2.5mm Out Shaft Diameter:Φ1.5mm Inner Shaft Diameter: Φ2mm Motor Dimension(Dia.*Len):Φ15mm*15mm Weight(g):4.4g No.of Cells(Lipo): KV6400 support 2-3s (Original motors for Crux3) KV8000 support 2-3s (Original motors for Cine8) KV11000 supoort 1s only
CrazybeeX series flight controller is the first 5in1 AIO flight controller which could handle 2s. It’s a better upgrade flight controller for your whoops. We could use this flight controller to building a 1s-2s compatible lightest 65mm/75mm/85mm brushless whoop or 2-3inch ultra light toothpick Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size:…
Description: Brand Name: Happymodel Item Name: Camera Canopy for Crux3 Mobula8 Bassline Material: ABS Color option: Transparent black Compatible with CaddxFPV ANT camera Net Weight:1.2g Package Included: 1 x Camera Canopy 2 x Screws for CaddxFPV ANT
Brand Name: Happymodel Specifications: Wheelbase:115mm Weight: 5.8g Thickness: 2.5mm
Image Sensor: 1/3″ CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE:4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 3D DNR Dimensions: 14*14mm(with bracket to 19*19mm) Wide…

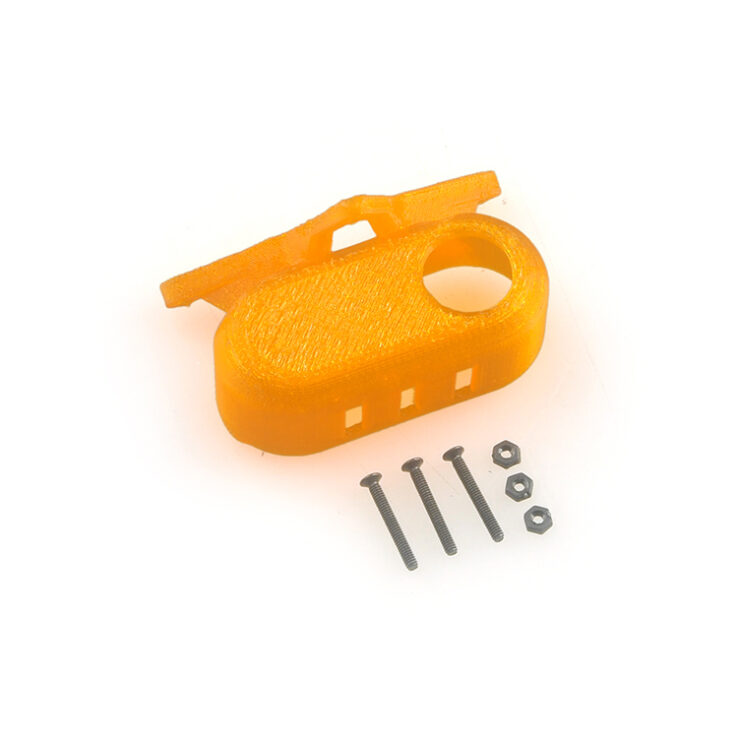

3D print mount holder of Insta360 go camera for Crux3 Package include: 3D print mount holder x1 Zip ties 3D Print file download insta 360 mount for cRUX3

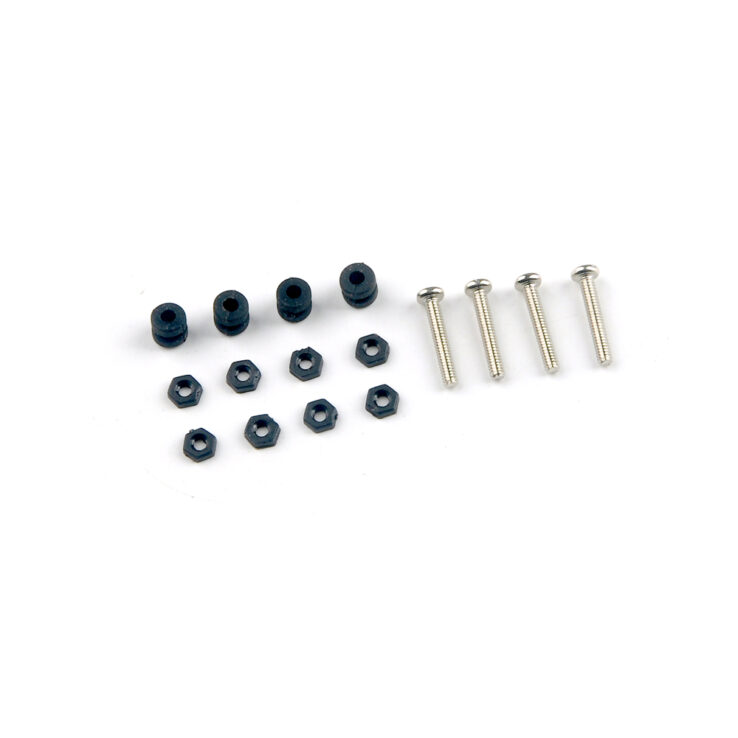

Package include: Short Rubber damping ball 4pcs M2 Nylon nut 8pcs M2x12 Screw 4pcs
Speki+ is the upgrade DSM2/DSMX/SRXL protocol compatible Micro 2.4Ghz receiver, it comes with PA module, longer range and stable signal transmission, with RSSI telemetry. You can get the RSSI from Betaflight OSD Specifications: Brand: Happymodel Model Name: Speki+ Weight: 1.2g Dimension: 20mm*12.4mm*5mm Support protocol: DSM2/DSMX Output Signal configuration: SRXL(Set Spektrum2048/SRXL for the serial receiver provider)…
CrazybeeX series flight controller is the first 4in1 AIO flight controller which could handle 2s. The CrazybeeX DXS V1.0 is the newest member which is the first flight controller built-in DSM2/DSMX compatible SPI Receiver. It’s a better upgrade for reduce the weight of your brushless whoop if you are using Spektrum transmitter. Best upgrade flight…
Noticed: IR1 is the signal of RX1 with inverter ,used for SBUS receiver. RX1 and IR1 couldn’t be used at the same time . CrazybeeX series flight controller is the first 5in1 AIO flight controller which could handle 2s. It’s a better upgrade flight controller for your whoops. We could use this flight controller to…
Notice: The flight controller of DSM2/DSMX version Mobula6 HD has been updated to be CrazybeeX DXS V1.0 after Dec.9th 2020 , it has built-in DSM2/DSMX spi receiver , so it won’t come with an external Nano_sp09 receiver. DXE / DX6E users are advised to purchase with caution, because the SPI program included in the…
Specifications: Brand name: Happymodel Item name: EX0802 brushless motor KV: 14000KV 19000KV 22000KV 25000KV optional Shaft Diameter: 1.0mm Configuration: 9N12P Stator Diameter: 8mm Stator Length: 2mm Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm Terminals: JST1.25mm No. of Cells(Lipo): 19000KV/22000KV/25000KV compatible with only 1S lipo 14000KV compatible with 1-2S lipo Wire length(include connector): 14000KV/19000KV/25000KV: 27mm 22000KV: 40mm Weight: 1.7g Features:…
Brand: Runcam Model: Split3-Lite Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3) Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps Video File Format: MOV Image Resolution:2 MP TV Mode: NTSC (720*480)/PAL (720*576) Switchable Interface: JST 1.25mm / UART and SH 1.0mm Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III) Hole Distance…
Noticed: IR1 is the signal of RX1 with inverter ,used for SBUS receiver. RX1 and IR1 couldn’t be used at the same time . CrazybeeX series flight controller is the first 5in1 AIO flight controller which could handle 2s. It’s a better upgrade flight controller for your whoops. We could use this flight controller to…
The first batch of the Mobula6 HD frsky version comes with 3D-printed camera mount holder. Specification: Brand Name: Happymodel Item Name: Camera Canopy for Mobula6 HD Material: PP Color : Transparent Black Net Weight: 1.5g Best for Runcam Splite3-lite Application: Original Replace Canopy for Mobula6 HD FPV Racing Drone Package Included: 1 x Camera Canopy…
Specification: Brand Name: Happymodel Model: Mobula6 HD Item Name: Anti-vibration Standoff & Screws Combo Set Application: Original replace part for Happymodel Mobula6 HD FPV Racing Drone Package Included: 4x Long Anti-vibration Standoff 4x Screws
Model: EX1204 KV option: KV5000 or KV6500 Configu-ration:9N12P Stator Diamter:12mm Stator Length:4mm Inner Shaft Diameter:Φ2mm Outer Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ15mm*16.2mm Weight(g):5.9g No.of Cells(Lipo): KV5000 support 2-4s KV6500 support 2-3s Happymodel EX1204 Motor Test Model No Load Propeller Voltage (V) Currents (A) Thrust (G) Power (W) Efficiency （G/W) Throttle EX1204-5000 0.19A 9740RPM@2V Gemfan 3025 76mm bi-blade…
Notes: The Larva-X HD comes with Speki+ DSM2/DSMX receiver instead SP09 DSM2/DSMX receiver after Mar.10th 2021 Features: Toothpick HD and Whoop HD 2 in 1 combo (Default Comes in Toothpick HD style) Toothpick style compatible both 2.5inch or 3inch propellers New design EX1203 High efficiency brushless motors Caddx baby Turtle provide 1080P 60FPS DVR video Camera Angle…
Inspire from our official team pilot “Angry Don FPV“ The flight controller updated to CrazybeeF4 Lite v3.1 since 17th Feb 2022 ,please check the update log Notice: The Camera of Mobula6 FOV is changed to 140 degree due to the earliest lens was stopped to production . Please view the new spec from Runcam website https://shop.runcam.com/runcam-nano-3/…
Brand Name: Happymodel Item Name: Camera Canopy for Mobula6 Material: PP Color option: Transparent Black Net Weight: 1g Camera angle could adjustable easily Best for Runcam Nano3 Package Included: 1 x Camera Canopy
Notes: R1(RX1) Pad is used for IBUS/DSM2/DSMX signal input IR1(IRX1) Pad is used for SBUS signal input (Already inverted) R1 and IR1 Cannot be used simultaneously Flight controller (Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR (Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS MCU:STM32F411CEU6 (100MHZ, 512K…
Model: RunCam Nano 3 Image Sensor: 1/3″ CMOS Horizontal Resolution: 800TVL Lens : 2.3mm(M6.5) FOV 140° Signal System: PAL/NTSC Non Switchable S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V 120mA@3.3V Housing Material: ABS Net Weight: 1.2g Dimensions: L14mm*W14mm*H9mm Used for…
Mode: EX1203 KV option: KV5500 or KV6200 Configu-ration:9N12P Stator Diamter:12mm Stator Length:3mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ15mm*15mm Weight(g):4.7g No.of Cells(Lipo): KV6200 support 2-3s (Original motors for Larvax HD) KV5500 support 2-4s Happymodel EX1203 Motor Test Model No Load Propeller Voltage (v) Currents (A) Thrust (g) Power (W) Efficiency （g/W) Throttle EX1203-5500 0.14A 11310RPM Gemfan 3025…
Used for Bwhoop65/ 75 / Mobula7 frames v2/ Mobula7 frames v3 Package include: Short Rubber damping ball 4pcs M1.2*5 Screws 3pcs M1.2*4 Screw 1pcs
Notice: Larva X v2 version frame were already compatible with 4-hole motors Specifications: Mode: EX1103S KV options: 7000KV Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter: Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm Weight(g):3.8g No. of Cells(Lipo): 2-3S Features: High efficiency and smooth Dual bearing design and more balance Better for Toothpick building Compatible with 40mm-75mm propellers Upgrade motor…
Specification: Brand Name: Happymodel Model: EX1105 Item Name: 1105 KV5200 3-4S Brushless Motor Configu-ration: 9N12P Stator Diameter: 11mm Stator Length: 5mm Shaft Diameter: Φ1.5mm Motor Dimension(Dia.*Len): Φ14mm*17mm Weight: 5.7g Wire length: 70mm include the connector Plug interface: JST 1.25mm 3pin Features: – New design rotors – High efficiency and smooth – Dual bearing and more balance…
Brand Name: Happymodel Colour: Transparent Black Weight: 1.5 gram Suitable for Larva X
Package include： D4*L7 Long rubber damping ball x3 D4*L4 Short rubber damping ball x1(front) M2*18 Nylon screws x1 M2*20 Metal screws x3 M2 Nylon nut x14
Brand Name: Happymodel Materials: 3k Carbon Thickness: 3mm Wheelbase: 100mm Weight: 8.7 gram
Notes: Because Emax can’t provide Avan rush propellers in time, so we will sending the LarvaX with HQPROP T2.5*2.5*3 propellers and EMAX Avan rush propellers randomly . The Larva-X DSMX version comes with Speki+ DSM2/DSMX receiver instead SP09 DSM2/DSMX receiver after Mar.10th 2021 Specifications: Brand Name: Happymodel Item Name: Larva X 2-3S 2.5inch Brushless FPV…
(Frsky version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR (Flysky version) CRAZYBEE F4FS PRO V3.0 Firmware target: CrazybeeF4FS (No RX version) CRAZYBEE F4 PRO V3.0 Firmware target: CrazybeeF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 2-4S battery input (DC 7-17V) Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready Frsky…
Manual download Specifications: Brand Name: Happymodel Output power: 25~200mw switchable Frequency: 40CH Input voltage: 4.8v~5.5v Current consumption: 250mA~510mA(type) Antenna: RG178 antenna U.FL interface Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready Weight: 3g without antenna Video Output Size: VGA (640×480) Video Output format: NTSC Record video size : 1280×720 @25FPS TF Card…
Specifications: Mode: EX1103 KV options: 6000KV 7000KV 8000KV 12000KV Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter: Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*16mm Weight(g):3.7g No. of Cells(Lipo): 6000KV support 3-4S 7000KV support 2-3S original motors for Larva X 8000KV support 2-3S 12000KV support 1-2S Features: High efficiency and smooth Dual bearing design and more balance Better for Toothpick building…
Specifications: Brand Name: Happymodel Item Name: Sailfly-X 2-3S Micro FPV racing drone Wheelbase: 105mm Size: 95mm*95mm*50mm(without propellers) Weight: 38g(without battery) Weight:63g(with Original 3s 300mah Lipo battery ) Features: Crazybee F4 PRO V2.1 AIO Flight controller 2-3s Lipo Compatible The lightest 1102 brushless motor only 2.8g with double ball bearings Light ,Powerful and smoothly AIO…
Package include: 2mm Carbon fiber bottom plate x1 3D print TPU Canopy 30 degree x1 Battery holder x1 Rubber damping balls x4 M2*18 Nylon screws x4 M2 Nut x 8 M1.4*4 screws x12
Package include: Crazybee F4 PRO V2.1 flight controller x1 XT30 Pigtail x1 5pin-5pin SH1.0 Plug ( used for connect with Whoop_vtx or Diamond_vtx) x1 2x 1s PH2.0 Serial connect power wire x1 Rubber damping balls set x1 Flight controller (Frsky version) CRAZYBEE F4FR PRO V2.1 Firmware target: CrazybeeF4FR (Flysky version) CRAZYBEE F4FS PRO…
Output power: 25mw Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Camera resolution: 700TVL Field of view: 120° Video Format: NTSC Antenna: RG178 antenna Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready Size: 13.9″12.0mm ( L*W ) Weight: 3.2g
Brand Name: Happymodel Mount hole : 1.5mm diameter Package include : 6cw+6ccw Color option: Black, Blue, Green, Red Material: PC
Package include： D4*L7 Long rubber damping ball x3 D4*L4 Short rubber damping ball x1(front) M2*18 Nylon screws x4 M2 Nylon nut x8
Brand: Happymodel Weight: 6.6 gram Wheelbase: 105mm Used for Sailfly-X
Brand: Happymodel Materials: PC Color option: Red (30 Degree) Purple(40 Degree) Weight: 4.5 gram Suitable for Sailfly-X STP Files download
Package include 12pcs M1.4×4 screws Used for Happymodel EX1102/EX1103 motor mount
Brand: Happymodel Materials: PC Weight: 0.6 gram Suitable for Sailfly-X STP Files download
Wire length: 70mm(include xt30) Height: 2.6gram Used for : Crazybee F3 / F4 PRO series flight controller Can avoid the risk of burning the mosfet or the 5v regulator at the moment of power on With this Capacitor , we can use 3S 300~350mah battery for the Crazybee F4 PRO V2.0 and Crazybee F4 PRO…
Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1-2S battery input (DC 3.5-8.7V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready ESC MCU Upgraded to EFM8BB21 Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable) Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS-2A Compatible) DSMX version Built-in Serial-based…
Description: Brand Name: Happymodel Item Name: Turtle2 Camera Canopy for Mobula7 HD Material: PP Color: Smoke Black Net Weight: 2.9g Camera angle could adjustable easily Package Included: 1pcs Camera Canopy 5pcs Screws 2pcs M2x5x1 Nylon gasket
Specifiactions: Mode: EX1102 KV options:8500KV 9000KV 10000KV 13500KV Configu-ration:9N12P Stator Diamter:11mm Stator Length:2mm Shaft Diameter:Φ1mm or Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*16mm Weight(g):2.8g No.of Cells(Lipo):2S-3S 8500KV Shaft 1.5mm for Sailfly-X 9000KV shaft 1mm for Mobula7 HD Features: The lightest 1102 brushless motor all over the world Mobula7 HD original brushless motors Dual bearing design and more balance 40mm…
Brand Name: Happymodel Capacity:300mAh Voltage:11.4v Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 65mmx18mmx11mm Weight: 24g Connector: XT30
Specifications: Brand Name: Happymodel Work voltage: 3.7v~16v Weight:0.3g Size:10mm*10mm*0.5mm Customized for Mobula7 HD Breath Light color indicates: If the single cell of voltage from the battery > 3.6v , the color turn on Green If the single cell of voltage from the battery< 3.3v, the color turn on Red Connection diagram:
Specifications: Suitable for Caddx Turtle to fit the Original Crazybee F3 / F3 PRO / F4 PRO The original nylon column for Mobula7 HD Package include: Fixed nylon column x 4pcs Rubber damping ball x 4pcs M1.2 x 5 screws x5pcs M1.4 x5 screws x4pcs
Update notes: Motors changed to 9000KV and removed the Microphone since 2019-04-08 The Mobula7 HD comes with Runcam Split3-lite instead CaddxFVP Turtle v2 after Dec.30th 2020 The Mobula7 HD comes with Speki+ DSM2/DSMX receiver instead SP09 DSM2/DSMX receiver after Feb.1st 2021 Update log: This batch of Mobula7 HD comes with OPENVTX could support…
Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1-2S battery input (DC 3.5-8.7V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready ESC MCU Upgraded to EFM8BB21 Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable) Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS-2A Compatible) DSMX version Built-in Serial-based…
Weight only 0.3 gram , with 3 led support LED_Strip programming via Betaflight configurarot Size: 27mm*10mm*5mm Socket Molex SH1.0mm 3pin Best for Mobula7 v3 frame
Item Name: Camera Canopy for Mobula7 Material: PC Color option: Transparent Red Net Weight: 2g Camera angle could adjustable easily Best for CADDX EOS2 camera Package Included: 1 x Camera Canopy set 2 x M1.2*5 Screws (Mount the plastic) 2 x M2*5 Nylon Screws(Mount the EOS2 camera) *Notes: The M2*5 Nylon Screw should cut to…
New design, more durable than V2 , with Mobula7 Led_strip mount hole The smoke black color v3 frame is original for Mobula7 HD Specifications: Wheelbase:75mm Weight:5.5g could fit the bellowing batteries: Happymodel 2S 300mah Happymodel 3s 300mah GNB 2S 300mah GNB 3S 300mah Compatible for Happymodel 0603/0703/0802/EX1102 seires brushless motors
Used for Bwhoop 75 / Mobula7 frames v2/ Mobula7 frames v3 The short rubber damping ball used for the front, the long rubber damping ball used for back in order to keep the flight controller from loosening when plug or unplug the USB Package include: Long Rubber damping balls 3pcs Short Rubber damping…
Small size ,lighter and easy to mount in a regular whoop Best for the Mobula7 upgraded Output power: 25~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Antenna: RG178 antenna U.FL interface Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready Weight: 2g without antenna
Mobula7 improvement frame , new materials, more durable, more light Specifications: Wheelbase:75mm Weight:4.2g Color option: Transparent or Transparent Black Model: M7FRAME V2 RECOMMENDED PARTS: Propellers: 40mm 3blades or 4blades Motors: Happymodel 0603/0703/0802 Brushless motor Flight controller : Crazybee F3 , Beecore BL , Beecore omnibus Crazybee F3 PRO. Crazybee F4 PRO Battery: 1S Lipo Lihv…
Output power : 25mw Frequency : 40CH Input voltage : 3.3V 5.5V Current consumption : 300mA(type) Camera resolution : 700TVL Field of view : 120° Video Format : NTSC Antenna : Clover antenna/Dipole antenna Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5474 5945 MHZ Size : 13.9″12.0mm ( L*W ) Weight : 3.5g With Smartaudio function
The world first 1-2S Brushless F3 flight controller with internal 4in1 ESC OSD 2.4G receiver Current sensor Buck / Booster is coming. You only need to add a VTX and Camera . It’s a best choice for 2S Brushless tiny whoop. Flight controller CRAZYBEEF3 PRO FS Firmware target: CrazybeeF3FS MCU: STM32F303CCT6 (72MHZ, 256K FLASH) Sensor: MPU-6000(SPI connection) Board size:…
Specifications: Brand Name: Happymodel Mode Name: Mobula7 Item Name: 1-2S 75mm Brushless Whoop racer drone BNF Wheelbase: 75mm Size: 98mm*98mm*36mm Weight: 27g(without battery) Max Take off Weight:60g Flying weight:40g(with Original 250mah lipo battery x2 ) Features: New Crazybee F4 V2 PRO Flight controller 1-2s Lipo compatible 2S whoop more powerful and more flight time Betaflight…
Another fun way to play with brushed Tiny whoop. Let’s rock and drift.. You can also enjoy the FPV Experience with the FPV goggles. These nifty, little conversion kits work with your Tiny whoop electronics to transform it into a fully functional, super-fast hovercraft that works on almost any surface
Capacity:250mAh Voltage:3.8v Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 55mmx12mmx7mm Weight: 6.5g Connector: PH2.0
Capacity:300mAh Voltage:3.8v Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 57mmx12mmx7mm Weight: 6.5g Connector: PH2.0 Compatible for Mobula6 and Mobula7
Length：40mm Shaft hole：1.0mm Suitable for：8520 Brushed，0603(1mm shaft) 0703 0802 Package include: 2cw propellers+ 2ccw propellers
BS430 Blheli_s 3-6S 4in1 ESC 4x30A OmniF3 F4 Fly-tower The BS430 4in1 ESC 4x30A Race Version runs the newest BLHELI_S firmware, supports Dshot/Multishot/Oneshot42/Oneshot125, it offer the best performance in 35x35mm size.integrated. Current and voltage sensor Works up to 30A each motor. Specification: BB21 MCU, 48Mhz Runs BLHELI_S J_H_xx firmware Supports 3-6S lipo input 4PWM input…
Description: Bwhoop65 is a high performance Brushless Tiny whoop Frame for Indoor FPV, light weight and durable. Compatible most 0603 brushless motor, like Racerstar0603, Boldclash0603, Happymodel 0603, Betafpv0603 etz.. This frame is the original frame for Happymodel Mobula6/Mobula6 HD/Moblite6 Specifications: Brand name: Happymodel Item name: Bwhoop65 65mm Frame Kit Color option: White, Blue, Lemon Green Wheelbase: 65mm…
Crazybee F3 flight controller is a Ultimate version for 1S Whoop brushless racing drone, it’s the world first Tiny whoop size brushless flight controller with Receiver/4in1 ESC/OSD/Current Meter all in one design, include all your needs . Specifications: Firmware: Betaflight_3.3.0_Crazybee MCU: STM32F303CCT6 (72MHZ, 256K FLASH) Sensor: MPU-6000(SPI connection) Power supply: 1S battery input (DC 3.5-4.35V)…
Notes: The New Snapper7 comes with SE0802 KV19000 motor , lighter and higher efficiency than 0703 motor since Sep.15th 2018 Specifications: Brand Name: Happymodel Mode Name: Snapper7 Item Name: 1S Brushless Whoop racer drone BNF Wheelbase: 75mm Size: 98.5mm*98.5mm*36mm Weight: 27g(without battery) Take off weight: 41g(with 450mah battery) Receiver Option: Frsky / Flysky / DSMX…
Specification: -Item Name: 2.4G SP09X micro DSM2/DSMX Satellite receiver -Frequency range: 2.403-2.479Ghz -Input power: 5V -Response time: 22ms / 11ms -Resolution: 1024/2048 -Display method: LED -Operating voltage: 3.3V -Working current: 60MA -Size: 18mm*13mm*5mm -Weight: 0.9 g -Antenna length: 30mm -Data format: Serial port -Protocol: DSM2/DSMX -Distance: no ground interference (1 m from the ground )…
Based on pixhawk’s powerful open source procedure, pixhack provide more functions. We removed those needless ports to make it better. In pixhack 2.8.4, IMU inertia control unit seperate with the main flight control, it become floating structure which can rstrain the viberation on high-speed mini copters. Description: Item name: Pixhack 2.8.4 Flight Controller Main control…
Specification: The board integrates with PX4FMU+PX4IO Pixhawk is with new 32 bit chip and sensor technology Processor: 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit Main frequency: 256K, 168MHZ RAM 32 bit STM32F103 backup co processor Sensor: L3GD20 3 axis digital 16 bit gyroscope LSM303D 3 axis 14 bit…
The new Pixracer (formerly called XRacer) is available now and its fully supported by the Arducopter and PX4 community. Its a genuine open source project, already running with PX 4 stack software / QGroundControl (QGC), as well with Arducopter / Mission Planner (MP). This is not just another small Pixhawk knock off or derivate, the…
The new Release Pixracer R14 is available now and its fully supported by the Arducopter and PX4 Flight stack. Its a genuine open source project, already running with PX 4 stack software-QGroundControl (QGC), as well with Arducopter / Mission Planner (MP). Compare to the V1.0 version, the R14 Version fixed Spektrum satellite binding issue. This…
Description: Item Name: Fli14 RX Channel: 14 Protocol: AFHDS-2A 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system Antenna Length: 50mm (single antenna) Input Power: 4.0-6.5V DC Weight: Only 1g Size: 19.5mm*12mm*5mm Color: Black Signal Output: IBUS RSSI Output: Channel14 No ground interference ( Transmitting and receiving 1 m…
Description: Item Name: Fli14+ RX Channel: 14 Protocol: AFHDS-2A 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system Antenna Length: 70mm (Dual antennas) Input Power: 4.0-6.5V DC Weight: Only 1.7g Size: 25mm*15mm*5mm Color: Black Signal Output: IBUS RSSI Output: Channel14 No ground interference ( Transmitting and receiving 1 m…
Specifications: Brand: Happymodel Weight: 41g Dimensions: 82x51x22mm Input: DC 7V-22V Output switchable: Fixed at 200~600 milliamps Cutoff voltage switchable: 4.20v cell charging cutoff (+- 0.5% margin of error) for 1S Lipo Battery 4.35v cell charging cutoff (+- 0.5% margin of error) for 1S 3.8V LIHV Battery Features: – Supports Picoblade 1.25, PH 2.0mm battery –…
Specification: Item Name: VTX Camera Output power: 25mw Frequency: 48CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Camera resolution: 700TVL Field of view: 120° Video Format: NTSC Antenna: RG178 antenna Frequency: 5.8GHz 6 bands 48 channels With Raceband: 5474 5945 MHZ Size: 13.9″12.0mm ( L*W ) Weight: 3g (HCF9) 3.5g(HCF8) Parameters: Frequency switching: By one…
Specifications: Item name: CNC Aluminum alloy Heat sink for 30.5mm*30.5mm 4in1 ESC Materials: Aluminum alloy Size: 32mm*32mm*4mm Compatible for Racerstar Rev35A , BS30A, Tekkos 30A 4in1 ESC Features: Customized for 4in1 ESC Good Cooling effect Better Protective for the ESC
Item Name: PG50 Alumimum 2inch propeller guard for 50mm propeller Materials: 5052T Aluminum alloy Color: Golden,Blue,Green,Red,Purple Weight: 2.7g Suitable for 2inch 50mm propellers Compatible 1102/1103/1104/1105 Brushless motor
Specifications: Brand Name: Happymodel Item Name:Mantis 85 Micro FPV RACING DRONES BNF Size:100mm*100mm*25mm Weight: 52g( battery not include) Flight controller: Super_S F4 Flight controller built-in Betaflight OSD Motor: Happymodel SE1102 KV9000 brushless motor Propeller: 1935 3-blades propeller Camera: 600TVL HD CMOS 1/4inch VTX: 5.8g 25MW 48CH NTSC/PAL Video transmitter Battery: 7.4V 400mah 30C lipo battery OSD: Betaflight…
Description: Item Name: 65mm whoop Frame 716 brushed motor compatible Best for Tiny6x Beta65s Wheelbase:65mm Weight:4g Compatible 7x16mm / 7x20mm brushed motor Usage for Kingkong/LDARC Tiny6X Beta65s Package Included: 1 x Frame
Camera/VTX Canopy for Tiny whoop Snapper6 7 Bwoop65 Bwhoop75 Angle adjustable
Specification: Flight controller Specification: Item name: TeenyF3 Pro flight controller board Size: 20*20mm Mounting hole: 16*16mm Diameter: 2mm Weight: 2.1g Processor: STM32F303CCT6 (72MHZ, 256K FLASH) Sensor: MPU-6000 ( connected by SPI) Firmware version: betaflight_3.1.7_OMNIBUS Built-in Buck-Boost Converter Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc. Power supply: 1S~2S lipo battery Suitable for…
Flight controller： Specification: Item name: TeenyF4 Pro flight controller board Size: 20*20mm Mounting hole: 16*16mm Mount hole Diameter: 2mm Weight: 2.2g Processor: STM32F405RGT6 Sensor: MPU-6000 ( connected by SPI) Firmware version: betaflight_3.2.0_OMNIBUSF4SD Built-in Buck-Boost Converter Power supply: 1-2S Lipo battery Receiver: PPM, IBUS, SBUS, DSM2, DSMX etc. Suitable for Micro FPV brushless frame ESC Specification:…
Happymodel 0802 Brushless motors benchmark Model No-load test Propellers Voltage (v) Current (A) thrust (g) Power (W) Efficiency（g/W) SE0802 KV16000 0.27A 31150RPM 1.9V 16394.7KV 31mm 4-blades propeller 4.20 0.96 8.20 4.032 2.034 4.20 2.05 14.00 8.610 1.626 4.20 3.18 17.40 13.356 1.303 4.20 3.54 18.10 14.868 1.217 0.29A 29710RPM 2V 15852kv 40mm 4-blades propeller 7.00…
Specification: Flight controller: Firmware: betaflight_3.2.1_OMNIBUS CPU: STM32F303CCT6 (72MHZ, 256K FLASH) Sensor: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection) Power supply: 1S Lipo / LIHV battery input (DC 3.6-4.35V) BEC: Built-in 5V / 0.5A step-up circuit Compatible Receivers signal: PPM, SBUS, IBUS, Spektrum DSM2 / DSMX, 1024/2048. Built-in OSD interface Active buzzer interface Dshot ESC…
The tiny whoop style Brushed flight controller built-in Betaflight OSD and 25mw VTX with Smartaudio is coming now. Best for Kingkong Tiny6/6x/7/7x . Specifications: MCU: STM32F303CCT6 (72MHZ, 256K FLASH) Sensor: MPU-6000(SPI connection) Power supply: 1S battery input (DC 3.5-4.35V) Built-in Betaflight OSD(SPI Controll) Built-in 5.8G 25mw 40ch vtx Smartaudio function ready Heading LED Ready Mount…
Specification: Brand Name: Happymodel Item Name: Fixing Mount for Lipo Battery Color: Red / Black ( Optional) Material: TPU 3D-Printed Size: 18mm*16.5mm*8.5mm Weight: 1.0g Usage for fixing 2pcs 250-300mah Application: Original part for Mobula7 FPV Racing Drone Package Included: 1x Fixing Mount for Lipo Battery
Item name: BS415 15A ESC Size: 27*31mm (inlcude bonding pad) Mounting holes: 20*20mm Weight: 3.5g Input voltage: 2-4S LiPo/ 2-4S HV LiPo BEC output: no Con. Current: 15A*4 Peak Current: 20A (5S) Firmware: BLHELI_S Processor: SILABS EFM8BB21F16G MOS tube: AON7754 Driver: a new generation 3in1 MOS driver Support PWM, Multishot, Oneshot125, DSHOT150/300/600 Package inlcuded: 1x…
Processor . 32bit STM32F427 Rev.3 Cortex M4 core with FPU . 168 MHz . 256 KB RAM . 2 MB Flash . 32 bit STM32F103 failsafe co-processor Sensor . ST Micro L3GD20H 16 bit gyroscope . ST Micro LSM303D 14 bit accelerometer / magnetometer . Invensense MPU 6000 3-axis accelerometer/gyroscope . MEAS MS5611 barometer
Specifications: Model SE0603 KV 16000 or 19000 Configu-ration 9N12P Stator Diamter 6mm Stator Length 3mm Shaft Diameter 0.8mm or 1mm Motor Dimension(Dia.*Len) Φ9mm*15.4mm Weight 1.7g Wire length(include connector) 35mm No.of Cells(Lipo) 1S Features: Super tiny only 1.7g Double E-clip design , prevent Motor bell to flying off Good Dynamic balance 0.8mm Shaft compatible Tiny…
Specification: Item name: Teeny1s 4 In 1 6A BLHeli_S ESC Size: 23x27mm (includes solder pad) Mounting holes: 16x16mm, φ2mm Weight: 2g Input voltage: 1S lipo or 1S HV-LIPO Con. Current: 6A Peak Current: 7A (5S) Firmware: BLHELI_S Processor: SILABS EFM8BB10F8G BEC: NO Driver: 3 in 1 MOS Supports Dshot150 Dshot300 Dshot600 Oneshot125 Multishot PWM Firmware…
Description: Brand Name: Happymodel Item Name: Camera Canopy for Mobula7 Material: PC Color: Transparent Black Net Weight: 2.2g Camera angle could adjustable easily Package Included: 1 x Camera Canopy set 4 x M1.2*5 Screws
SPECIFICATIONS: CPU: STM32F030 Six-Axis: MPU6050 Receiver module:XN297LBW ESC: All FETs are rated at 12A maximum. Support 6x15mm/7x20mm/8x20mm/8.5x20mm etc motors. Size: 26mm x 26mm, fully compatible with the Inductrix quad frame and mounting pattern Firmware : Silverware Receiver protocol: Bayang protocol Power Cable: 50mm, with JST-PH 2.0 connector, Weight: 2.7g Features: Support level mode…
Bwhoop75 is a high performance Brushless Tiny whoop Frame for Indoor FPV, light weight and durable. Compatible most 0603/0703 brushless motor , like Racerstar0603/0703, Boldclash0603, Happymodel 0603/0703, Sunnysky 0703 etz.. Specifications: Wheelbase:75mm Weight:4.8g RECOMMENDED PARTS: Propellers: 40mm 3blades or 4blades Motors: 0603/0703 Brushless motor Flight controller : Crazybee F3 , Beecore BL , Beecore omnibus…
Compact, lightweight power supply filter with switch, helps clean up dirty DC output jitter that often causes lines in wireless video images. The filter is an LC type that uses large value inductor and capacitor components. Max. 16V input Maximal current: 2A Built-in Reverse Polarity protection Very low voltage drop
Specification: Item name : BS30D 2S-6S BLHELI_S ESC with RGB LED Work voltage: 2S-6S Firmware: BLHeli-S Firmware update:Yes Firmware Target: J_H_15 Functions: DShot150,DShot300,DShot600,Multishot,Oneshot125,Oneshot42 Continuous Current: 30A Burst Current: 40A(10s) Input Voltage: 2 – 6S Size:30mm*15mm*6mm Weight:3.6g Feature: BB21MCU 48MHZ working frequency Latest BLheli_s Dshot firmware 25V max.input QFN5x6 power MOSFET Better cooling ,less heat…
